Armored anti-theft received contact crm14ot alarm

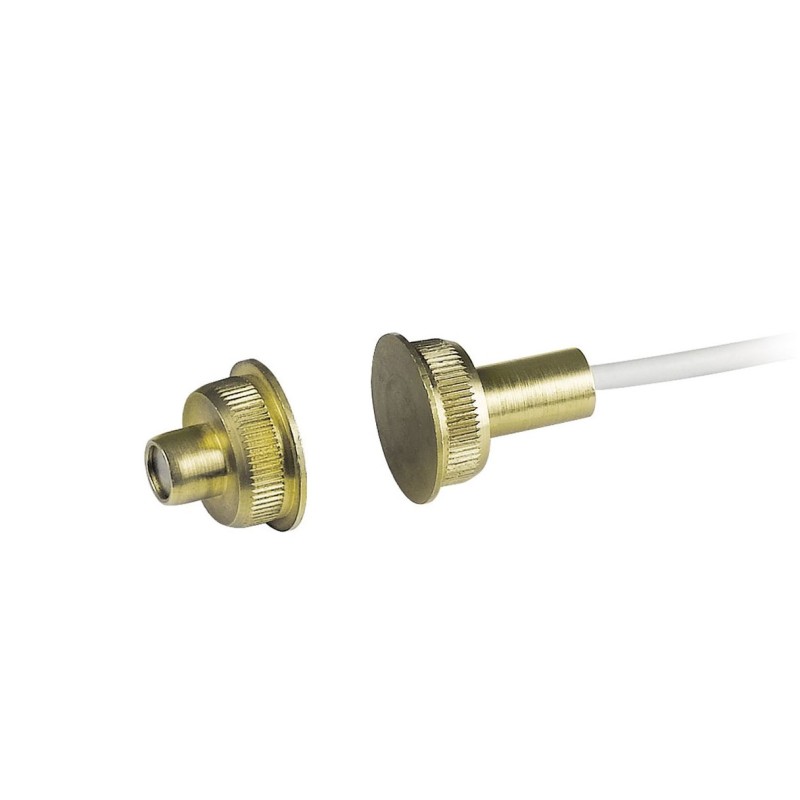

Magnetic contact in built-in brass for armored doors
magnetic brass contact for flush mounting in frames. it is suitable for installation on any type of frame, even of material
ferromagnetic (iron), in fact, thanks to the special knurling fits perfectly where necessary. typical applications are: armored doors,
iron doors and gates. it is press fitted into a 20 mm diameter hole. the reed part contains an encapsulated reed ampoule
hermetically with epoxy resin together with a tamper loop to reduce the possibility of break-in.

- flush mounting
- suitable for any fixtures
- material
- wire connection
- with wire loop
- anti-tampering (tamper)


very small size
- flush mounting
- brass body
- suitable for doors and windows in
- aluminum, wood, pvc
- wire connection
- with wire loop
- anti-tampering (tamper)
- imq approval
- type of nc contact
- maximum voltage 200vcc
- current max 1a
- max power 10w
- no. of wires 4
- cable length 1.2 mm
- brass casing material
- hole dimensions d. 0.20 mm
- 17.5 mm tube length
