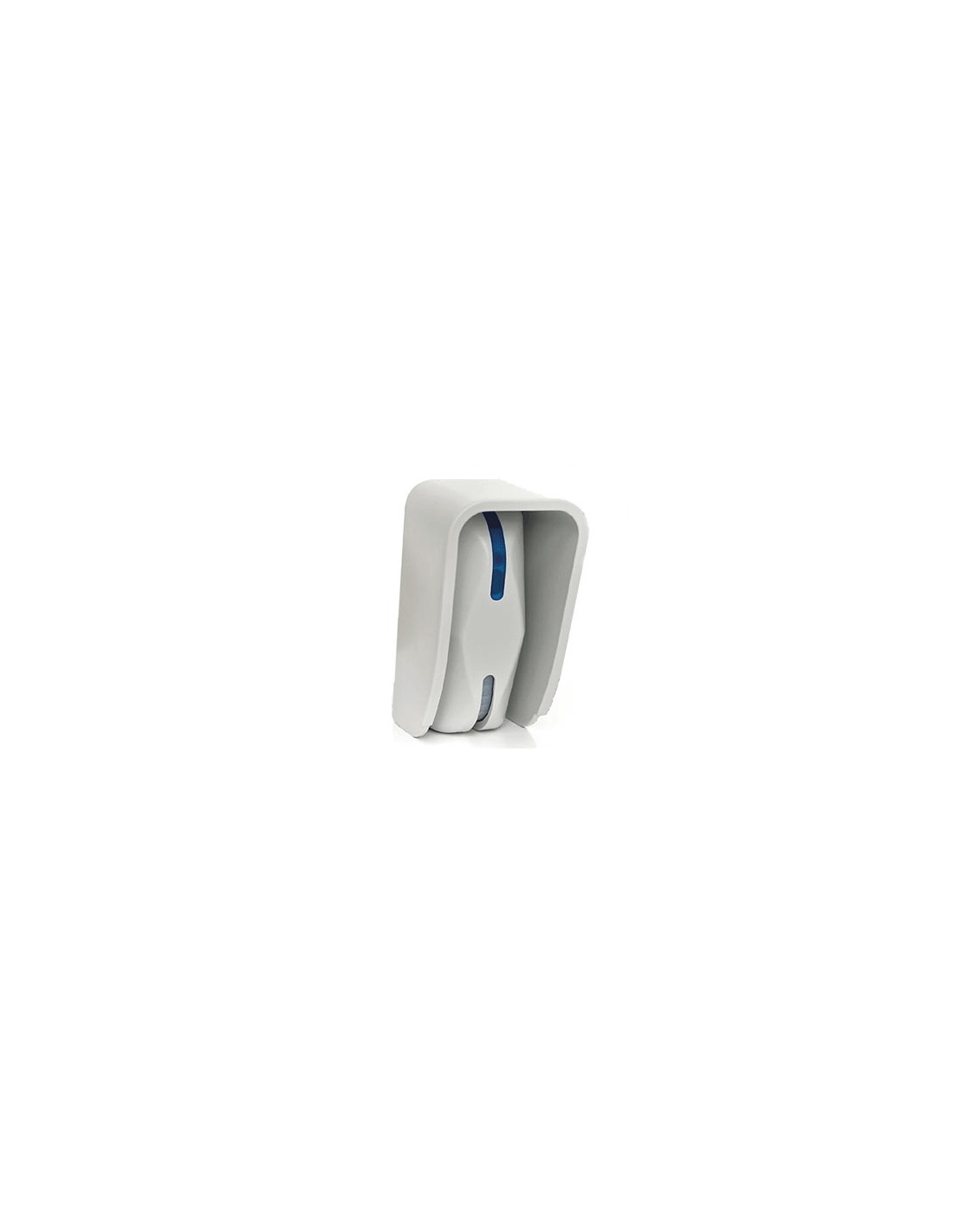

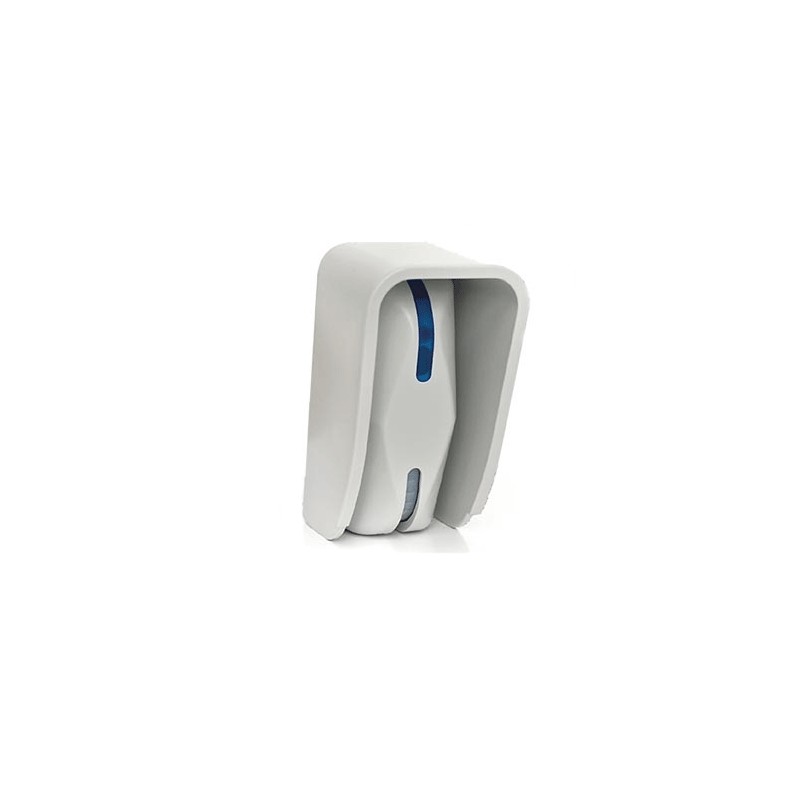

Anti-theft curtain detector velvet 15mt bentel

Dual technology anti-theft curtain detector. velvet dt factory.

the velvet detector dt factory lab is a high-tech sensor and is designed to be combined with commercial tx transmitters
battery powered. the velvet dt factory lab must be powered
however with a 3.6v lithium battery. if with the same battery comes
supplied tx is also recommended a capacity of>> 2300mah.

to facilitate the installation the connection and the housing of the tx were
expected two accessories:
box-a and tamper unit for box-a with connections
power supply (3.6v and 3v) and signals to the tx;
- waterproof container for tx and power-a.
- a set of configurations are highlighted
tx / detector with use of one or two batteries related accessories used and
salient features for each configuration.
- for the technical connection and assembly diagrams refer to the manuals
of accessories.
power-a box-a
the dual technology sensor (mw irp)
volumetric curtain for outdoor low power consumption for
battery-powered radio applications.

technical specifications

- lithium 3.6v battery power supply
- dimensions 110x44x46 mm
- absorption in detection 600ua
- absorption with led on 3.5ma
- absorption in operating mode 14ua
- tamper 100ma / 30v
- alarm time 1sec
- electronic alarm relay 10ma / 3.6v
- 24 ghz microwave
- theoretical mtbf 120.000ore
