Dimmer with switch for led driver and fluorescent d110k 1 10vdc

Passive dimmer for cv strip led power supplies, dc led drivers and electronic ballasts for dimmable fluorescent tubes with 0 / 1-10vdc signal with potentiometer control and push-push diverter switch.
keystone electronic dimmer for clip-on adapters of several well-known brands.
the controlled load is adjusted by turning the control knob which acts on the potentiometer.

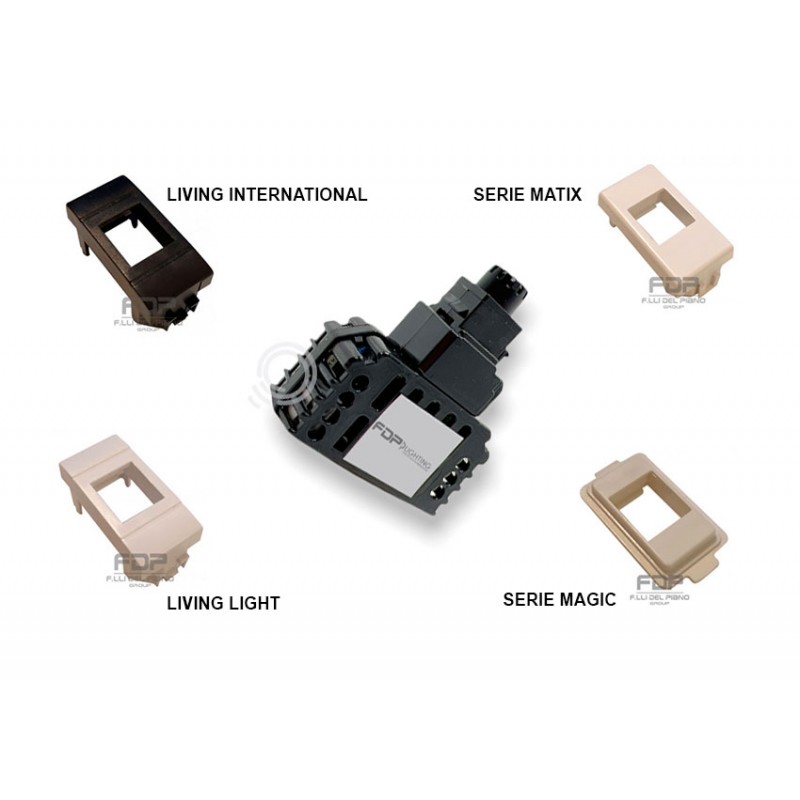

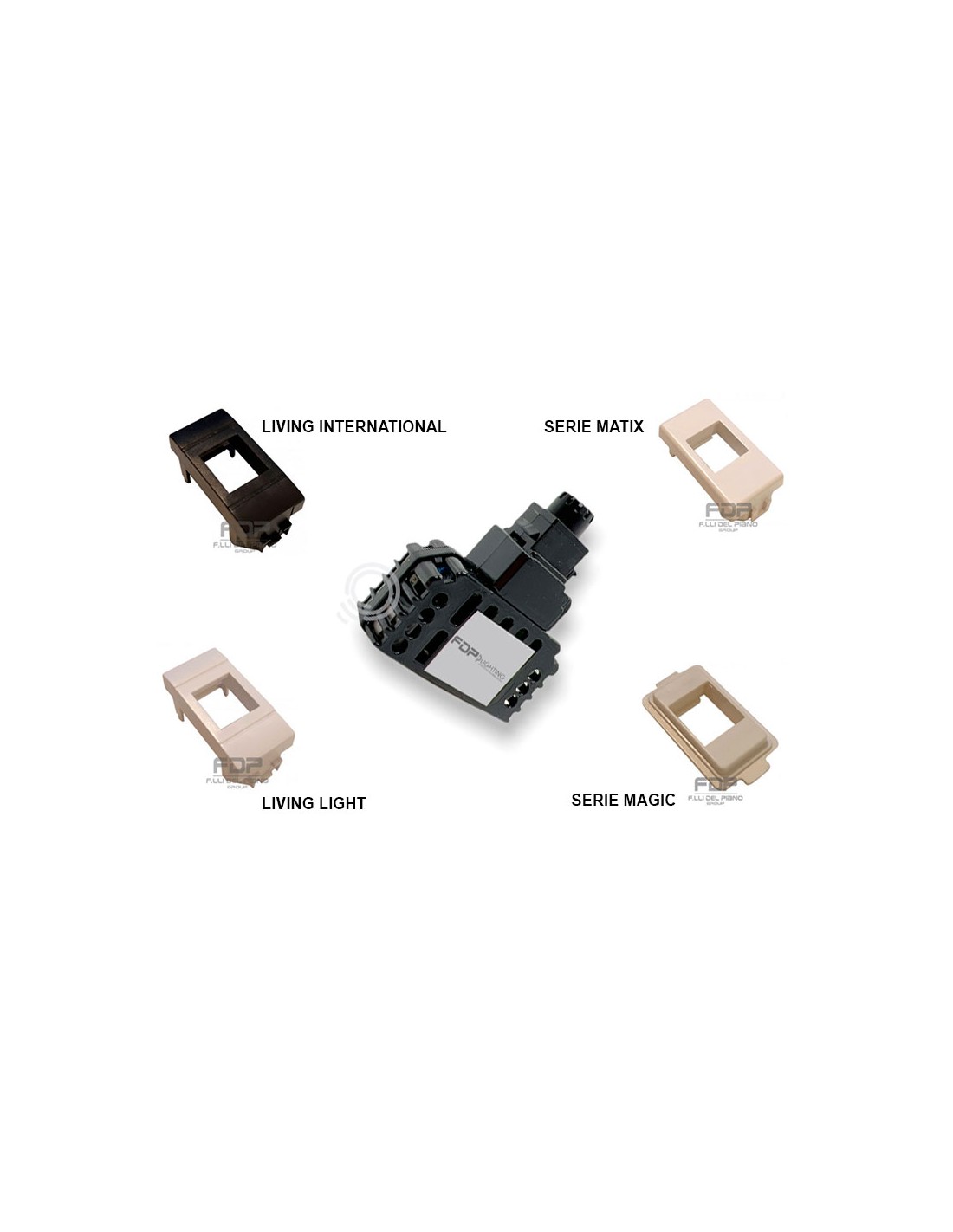

this dimmer model can be inserted in any civil series such as living international, living light, magic, matix.

just buy the cover that we list the codes.
- te0800 magic series
- te0803 living light series
- te0804 living international series
- te0807 matix series
choose which cover you need.
if you want information, you can contact us

technical data
- black keystone color
- power 1-10vcc
- 220v power supply
- keystone system with push-push diverter
- the installation diagram inside the package
