use for engine operation, lighting applications, ceiling lights,
are installed for asynchronous motors, air conditioning, household appliances ,
compressors, pumps, garages, door openers, unit awnings, heat pumps ..
the container is made of plastic with faston connections

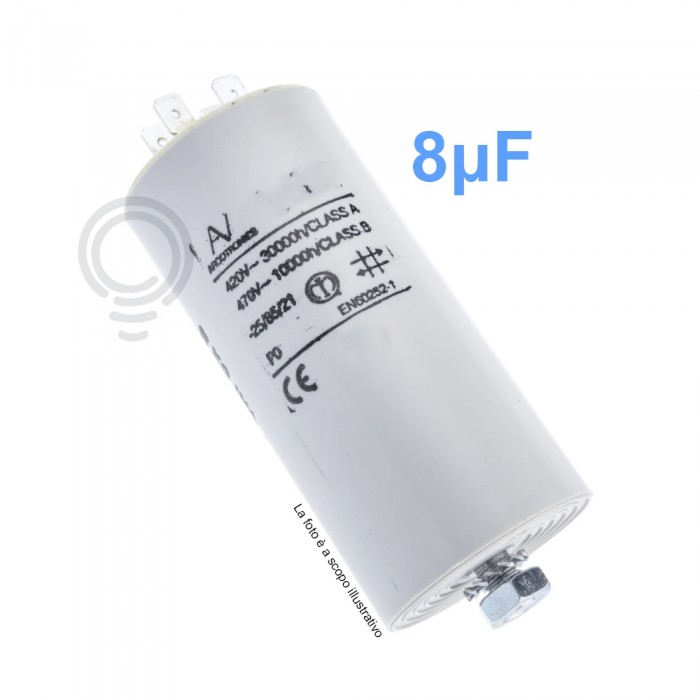

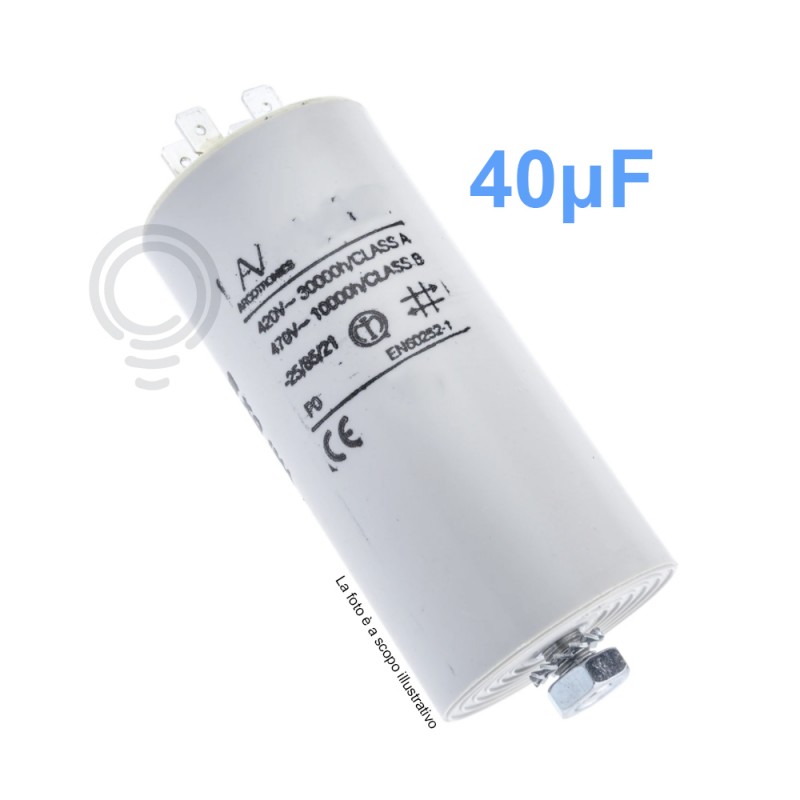

· motor starting capacitors
· double faston terminals
technical features:
rated frequency: 50 / 60hz
rated voltage: 220-500 vac
nominal capacity: 0.6-60mfd
temperature range: -25 / 85 degrees
dissipation factor: 0.004 (100 hz, 20 ° c)
test voltage: tt: 2s 2un; tc: 10s 2000v ac
standard: gb / t3667-1-2005 iec
400v 500v 450v- ac
· capacity tolerance ± 5%
capacitance in mf microfarad µf 40
