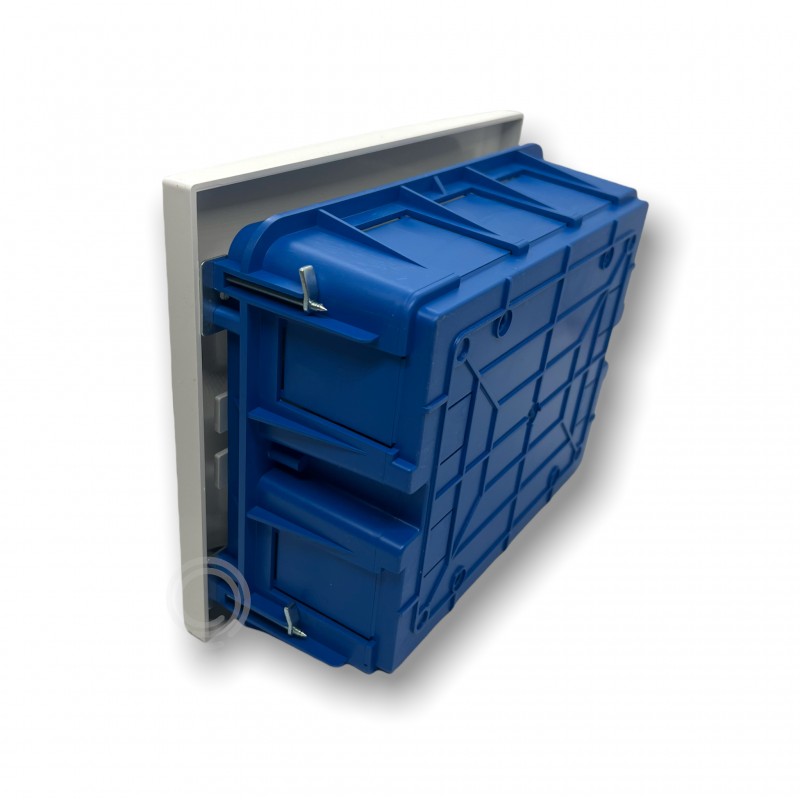

Built-in light-walled control unit with 8 white modules ec63508b electrochannels

Gray recessed switchboard with smoked door and blue box.
the electrical distribution panel is a box of the electrical system where it distributes and supplies the sockets the electrical system the lighting system the electrical appliances and all that is part of the electrical world. it is used for plasterboard walls.

with the electrical panel it is possible to divide the electric lines according to the needs and have a security if a greater load occurs or if a short circuit occurs or if maintenance must be performed at the electrical sockets.
the electrical panel usually has an impact-resistant polycarbonate structure and is chosen based on the switchboard modules to be inserted.

on the market there are various sizes of electrical panels with 4-module sockets to a max 24 modules - then for industrial jobs you choose more complex and differently structured panels.
the electrical switchboard meets the protection and control needs of modern distribution systems.
the installation of the electrical panel is simple and easy thanks to the supplied accessories that complete the system. the recessed electric central unit with door is available in the classic ral9001 gray color.
the high mechanical resistance ensures maximum protection for protection in common outdoor applications such as industrial premises or civil series.
possibility to install electrical appliances with a depth of 48 and 75 mm.

transparent smoked door.
external frame and door in extra-shiny material.
terminal block kit suitable for any type of model and easy to install.
circuit identification labels.
they contain fixing brackets to have double insulation. electric safety systems.
conductor entry through ip55 cable glands
provision for cover sealing with screws.
the screws securing the cover to the base are hidden by a side frame.

technical features
- 8 modules din
- degree of protection ip40 -
- fumè transparent polycarbonate door -
- high impact resistant blue technopolymer box
- predisposed for terminal board assembly
- din bar for magnetothermic assembly with extractable support mounted -
- external frame and door in exstralucido material -
- the product is sold in the single cardboard box for the protection of the parts to be assembled at the end of the masonry works -
- structure white color frame ral 9001
- article ec63508 elettrocanali
- measures 240 x 194 x 80 mm imq ce
