Interlocked outlet ceiling eec blue 16a ip44

Interlocked outlet ceiling eec blue 16a ip44

Name: Interlocked outlet ceiling eec blue 16a ip44
Brand: Elettrocanali
SKU: EC69090
Price: 28.1 EUR
Availability: InStock

Reference EC69090

€28.10

Tax included

Safety device for electrical line protection of 220v cee tools

Description

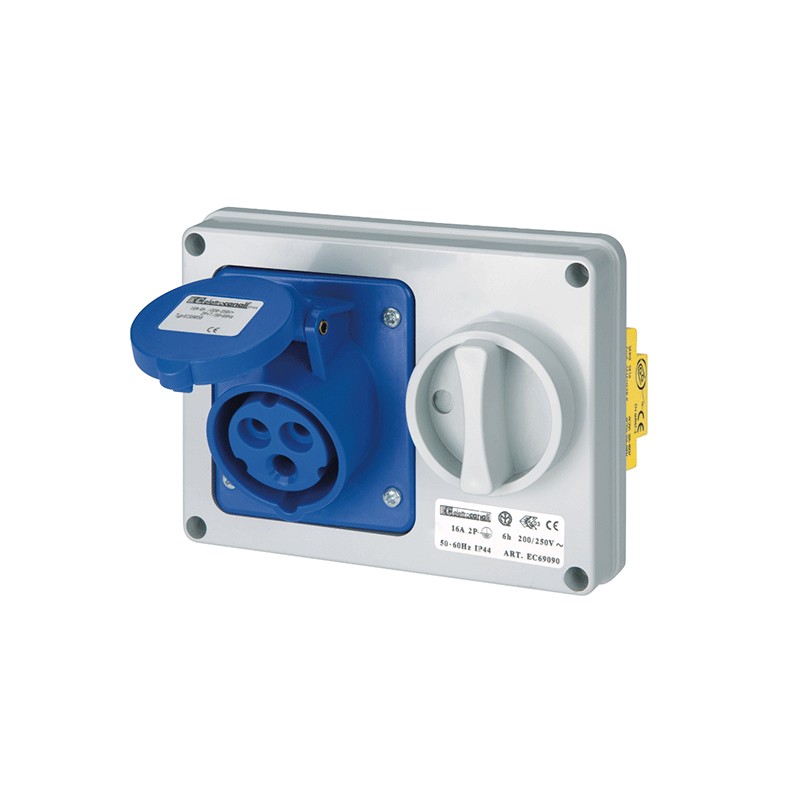

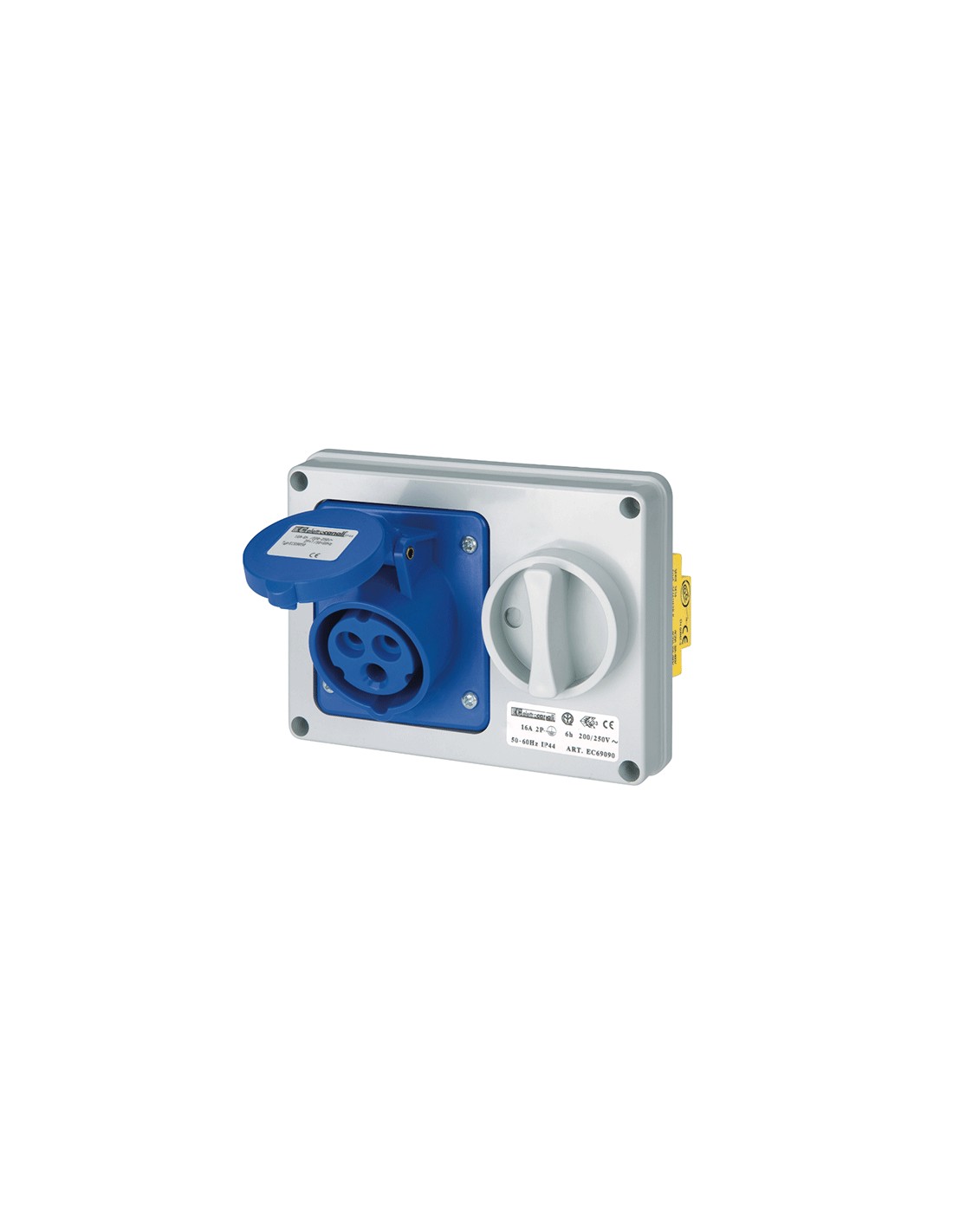

Interlocked electrical outlet without horizontal bottom box.

the position of the interlocked safety electrical sockets in addition to meeting the requirements of the plant regulations must be evaluated during the design phase taking into account the layout of the factory or craft store that must be realized and the placement of appliances the need for electrical sockets are easily accessible so you can be controlled.

- 20 ° inclined fixed interlocking socket for industrial installation
- switch ac23a-10ka type
- indi currents 16a
- padlockable handle in on or off position
- resistant to chemical and atmospheric agents
- stainless steel lid closing springs
- dimensions 155x115x23 mm
- poles 3 2p t
- blue color
- nominal voltage 380-415v
- degree of protection ip44

- bottom box sold separately cod. ec690900
