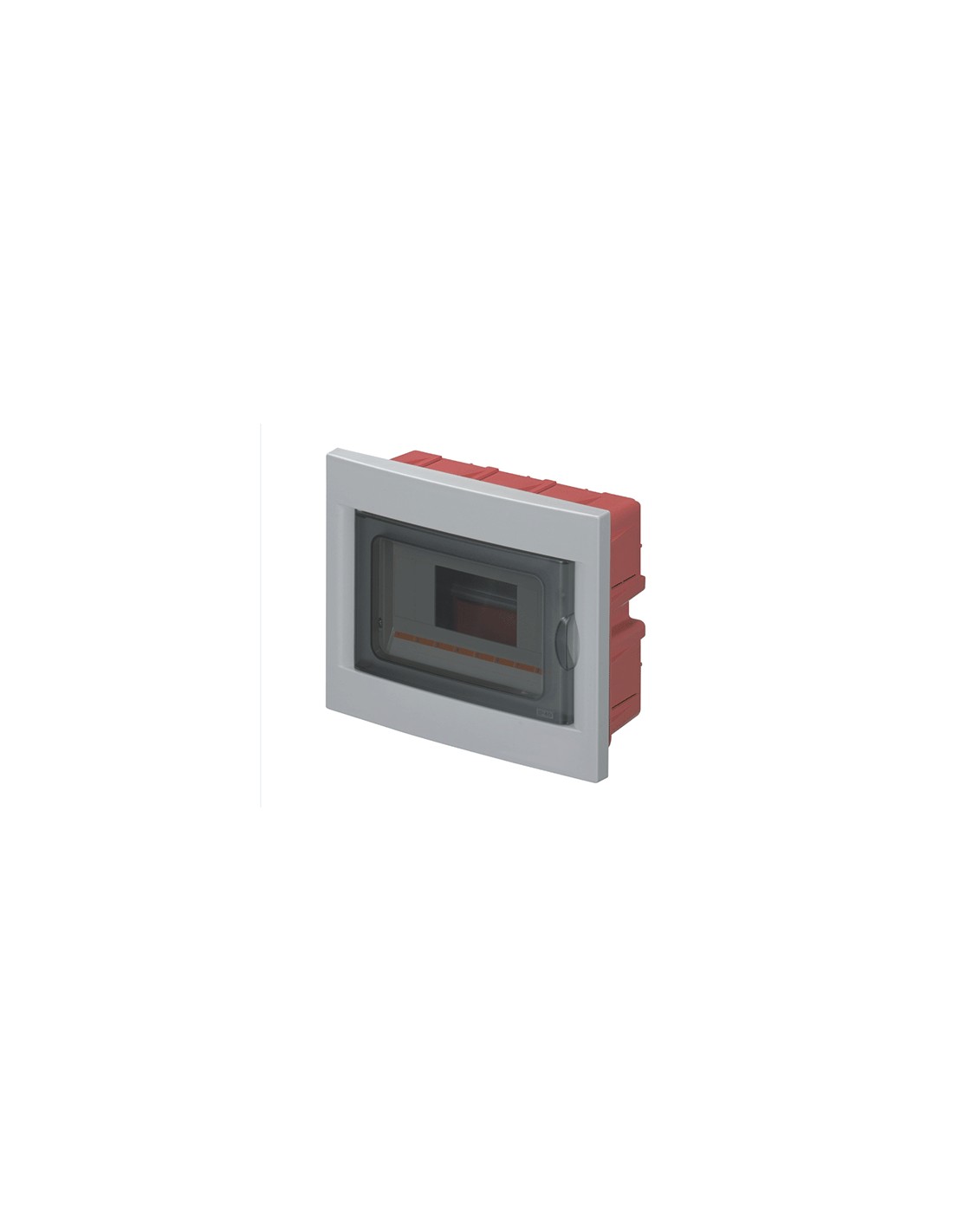

Built-in wall unit 12m with door 63012 elettrocanali

Gray recessed control unit with smoked door 12 modules din

the electrical distribution panel is a detached device of the electrical system where it distributes and supplies the sockets the winery electrical system the lighting system the appliances and all that is part of the electrical world.

with the electrical panel it is possible to divide the electric lines according to the needs and have a security if a greater load occurs or if a short circuit occurs or if maintenance must be performed at the electrical sockets.
the electrical panel usually has an impact-resistant polycarbonate structure and is chosen based on the switchboard modules to be inserted.

there are various sizes of electrical panels with 4-module sockets and a max 102 - then for industrial jobs more complex and differently structured panels are chosen.
the electrical switchboard meets the protection and control needs of modern distribution systems.
installation is simple and easy thanks to the supplied accessories that complete the system. the recessed electric central unit with door is available in the classic ral9001 gray color.
the high mechanical resistance ensures maximum protection for protection in common outdoor applications such as industrial premises or civil series.
possibility to install electrical appliances with a depth of 48 and 75 mm.

technical features
»ip40 protection rating -
»dark transparent polycarbonate door -
»box in orange polystyrene with high resistance to shocks -
»predisposed for terminal board mounting -
»din bar for magnetothermal mounting with removable support mounted -
»external frame and door in exstralucido material -
»packaged in single cardboard for the protection of the parts to be assembled at the end of the masonry works -
»ral 7035 gray color frame
»dimensions 320 x 240 x 80 mm
»imq ce
