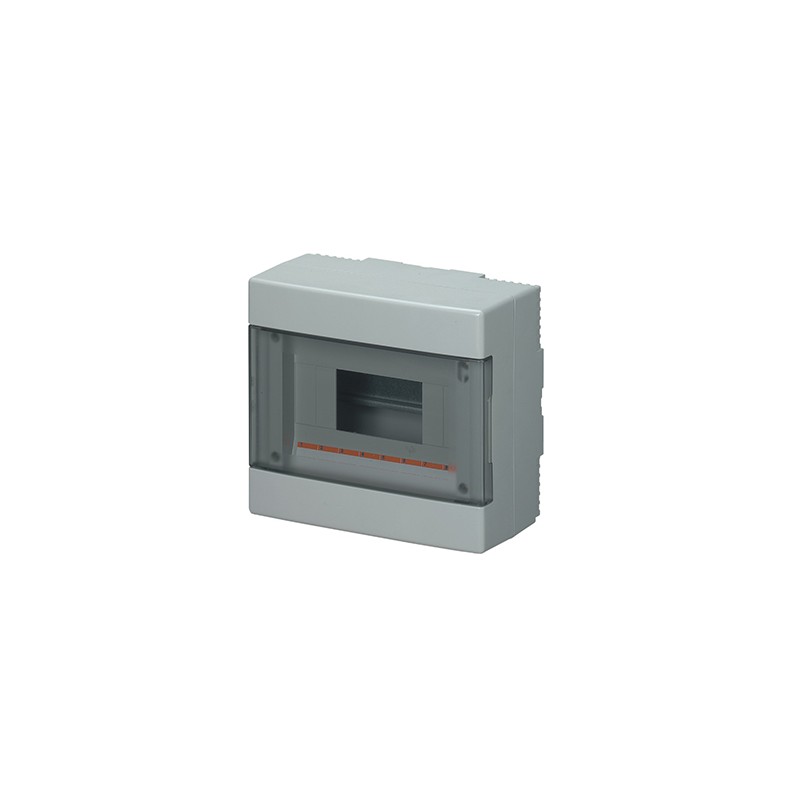

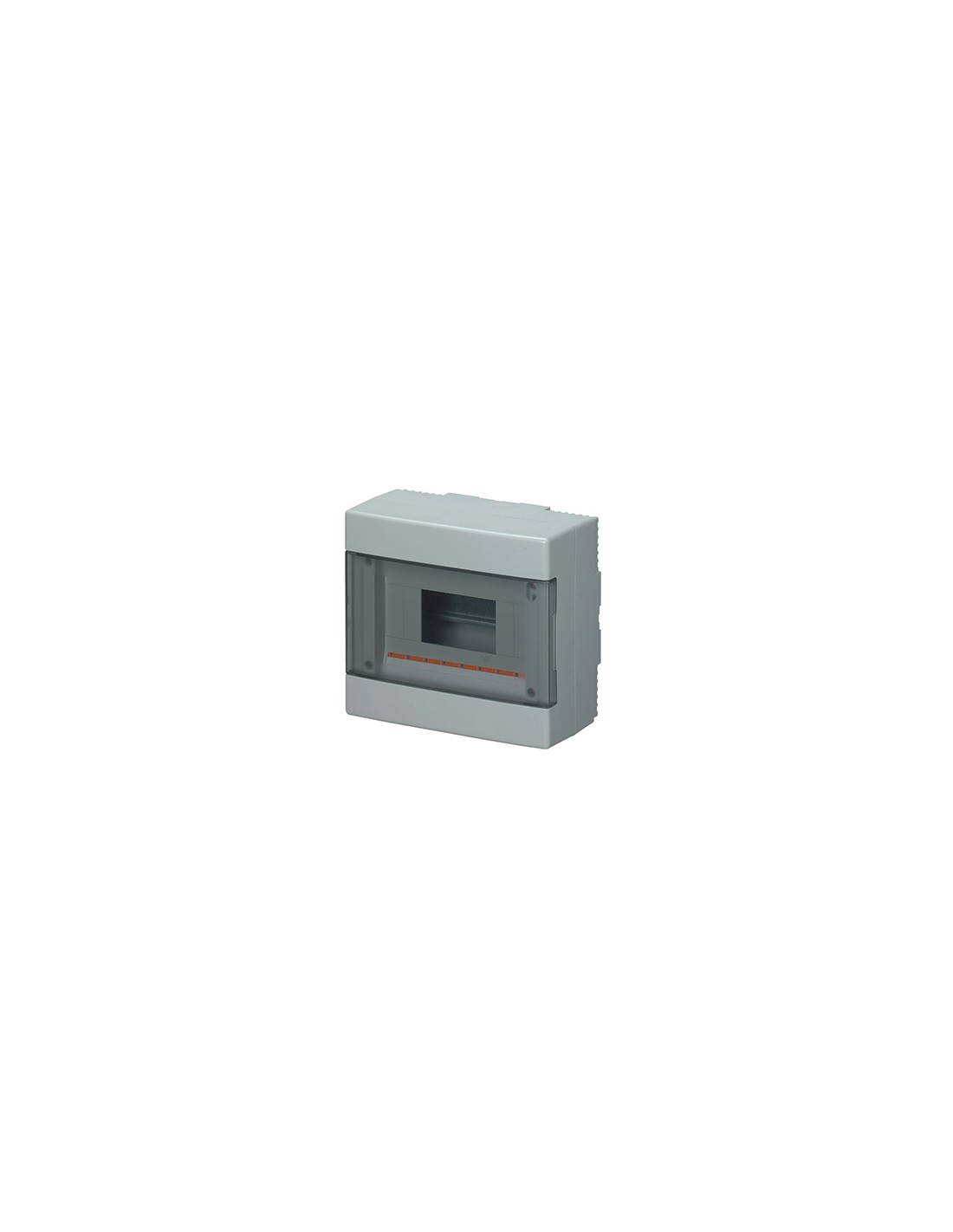

Ip40 8mod electric panel control panel

The electrical distribution panel is a detached device of the electrical system where it distributes and supplies the sockets lighting system appliances and all that is part of the electrical world. box for thermal magnetic circuit breaker box for life saver.

with the electrical panel it is possible to divide the electric lines according to the needs and have a security if a greater load happens or if a short circuit occurs or if you need to do a maintenance to the electric circuit and protections for electrical sockets.
the electrical panel usually has an impact-resistant polycarbonate structure and is chosen according to the modules of magnetothermal switches to be inserted.
there are various sizes of electrical panels from 4 modules to a max 102 - then for industrial jobs you choose more complex and structured differently.

the electrical switchboard meets the protection and control needs of modern distribution systems and an external electrical system.
the installation of the electrical panel assembly is simple and easy thanks to the supplied accessories that complete the system. the wall switchboard with door is available in the classic gray ral7035 color.

easy connection to the electrical panel.
the high mechanical resistance ensures maximum protection in common outdoor applications such as industrial premises or civil series.
possibility to install electrical appliances with a depth of 48 and 75 mm.
very simple electric panel assembly.

technical features
- reversible smoked transparent door
- terminal block kit suitable for any type of model and easy to install.
- circuit identification labels.
- fixing bracket to have double insulation.
- conductor input through ip55 cable glands
- predisposition for sealing plumbing with screws.
- the fixing screws of the cover at the base are hidden by a side frame.
- dimensions 200x180x100 mm
- number of modules 8
- ip40 energy class
