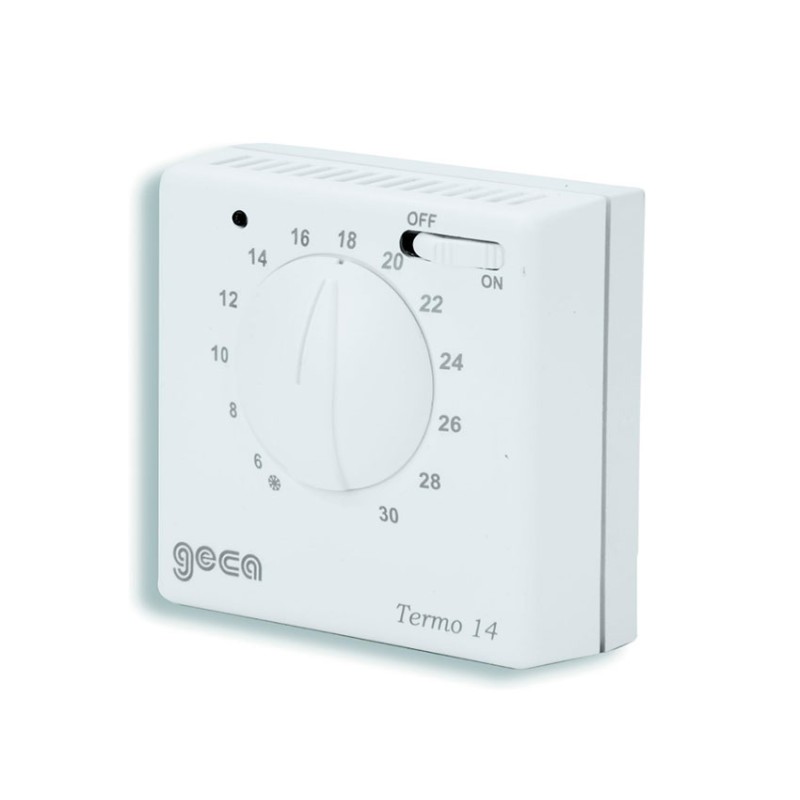

Boiler room thermostat and electromechanical on/off switch geca

Electromechanical thermostat
Temperature control: The room thermostat regulates the operation of the heating or cooling system according to the set desired temperature. When the temperature reaches the set value, the thermostat stops the operation of the climate system to keep the room at the desired temperature.

Switch: A thermostat with switch allows you to manually turn the heating or cooling system on or off. It can be useful when you want to temporarily deactivate the system or manually control the environment without having to change the temperature settings.

Light: The light on the room thermostat can indicate different states, such as for example the switching on or off of the climate control system, the activity of the thermostat or any operating errors.

code 35410429 thermo 14.2 1 changeover contact with indicator light and on-off switch
- it is the simplest of the geca room thermostats for regulating the desired temperature. the operation exploits the vapor pressure membrane technology and the connection to the load to be controlled takes place with only 2 wires.

technical features:
- power supply: 2 wires for connection to the 230vac load for indicator light power supply
- wall installation
- specifications: unipolar lung thermostat
- switching contacts
- thermal differential ± 0.8°c
- thermal gradient 1k / 15 min
- regulation range 5 - 30°c
- relay contact rating 16(a) (2.5) at 250vac
- dimensions 70x70x30mm
- opaque white colour

Termo142 Manual
