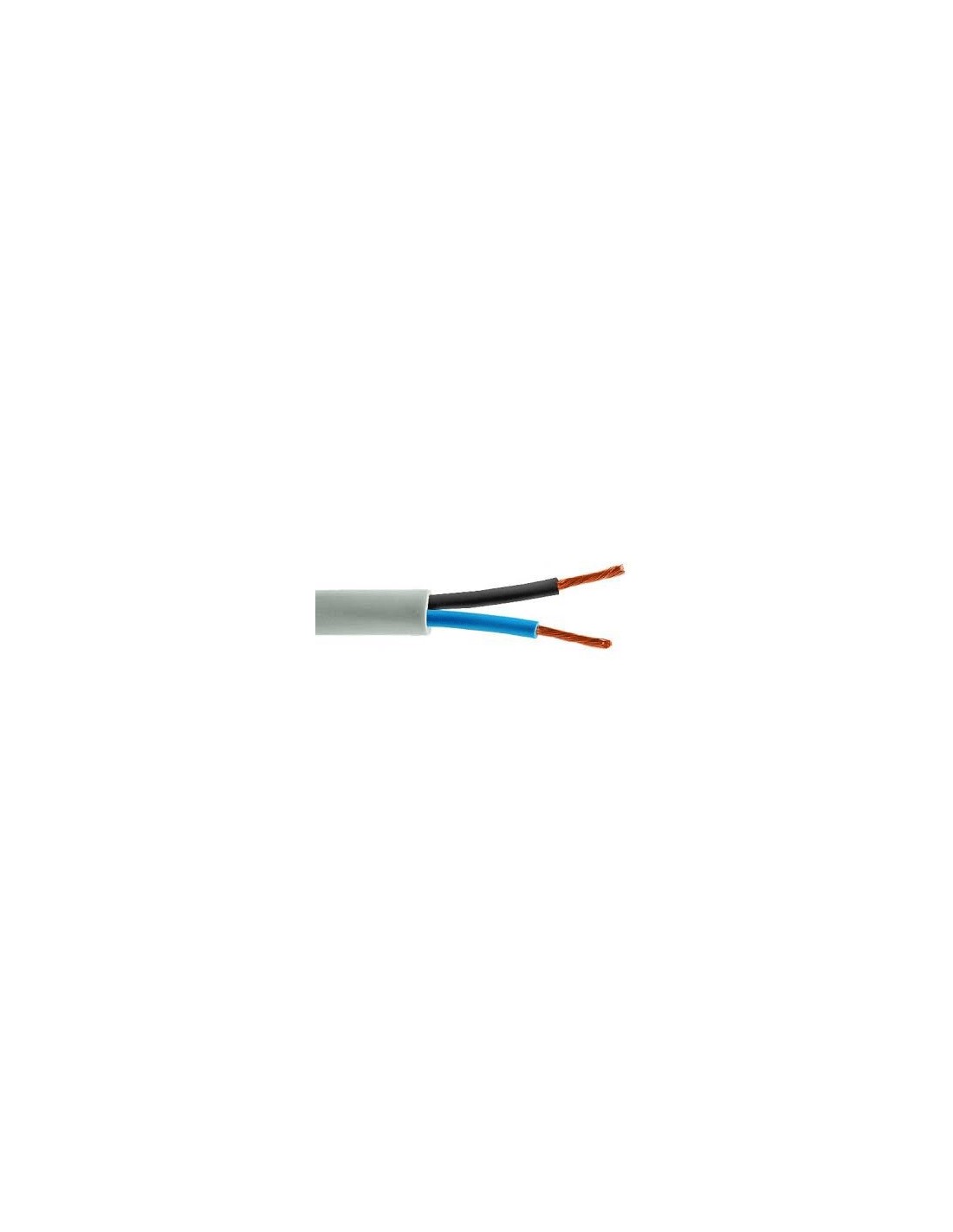

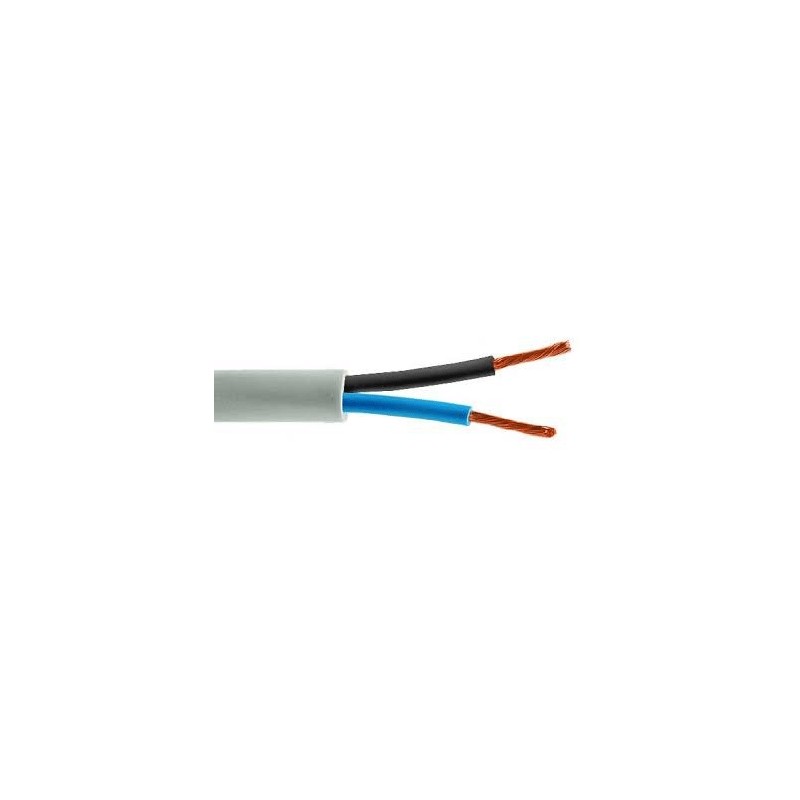

Electric rubber cable 2x1,5mmq brown fs18or18 icel conduit

Multipolar electric cable npi fs18or18
- 450/750 v 2x1,5mmq

for fire retardant mobile laying e
with reduced halogen emission (corrosive gases), pvc insulated under a
pvc, with flexible red copper conductor imq-cpt-007, cei 20-20 / 1, cei
20-20 / 2,
cei 20-22 ii, cei en 50267-2-1,
cei en 50265-2-1, cei 20-52
conductor: red copper, flexible formation, class 5 npi fs18or18 - 450/750 v
insulation: pvc, ti2 quality
sheath: pvc, tm2 quality
brown color
npi® = fire retardant
functional characteristics
rated voltage uo / u: 450/750 v
maximum working temperature: 70 ° c
maximum short circuit temperature: 160 ° c
particular characteristics
good resistance to mechanical stress and chemical agents.
good flexibility and behavior at low temperatures.
laying conditions
minimum installation temperature: 0 ° c
minimum recommended bending radius: 10 times the diameter of the cable per laying
mobile, 4 times for fixed installation.
maximum recommended tensile stress: 1.5 kg per mm² of copper section for
mobile laying, 5 kg per mm² for fixed laying
use and type of installation
installation for mobile and fixed installation in places with fire danger such as
trade fairs, residential construction, industry and crafts.

they can be installed indoors, in normal or humid environments and
temporarily outside.

- also sold by the meter
- 100mt skein
- brown color
- section 2x1.5 mmq
