- 450/750 v
for mobile laying not propagating fire and
with reduced emission of halogens (corrosive gases), pvc insulated under sheath of
pvc, with red copper flexible conductor.imq-cpt-007, cei 20-20 / 1, cei
20-20 / 2,
cei 20-22 ii, cei en 50267-2-1,
cei en 50265-2-1, cei 20-52

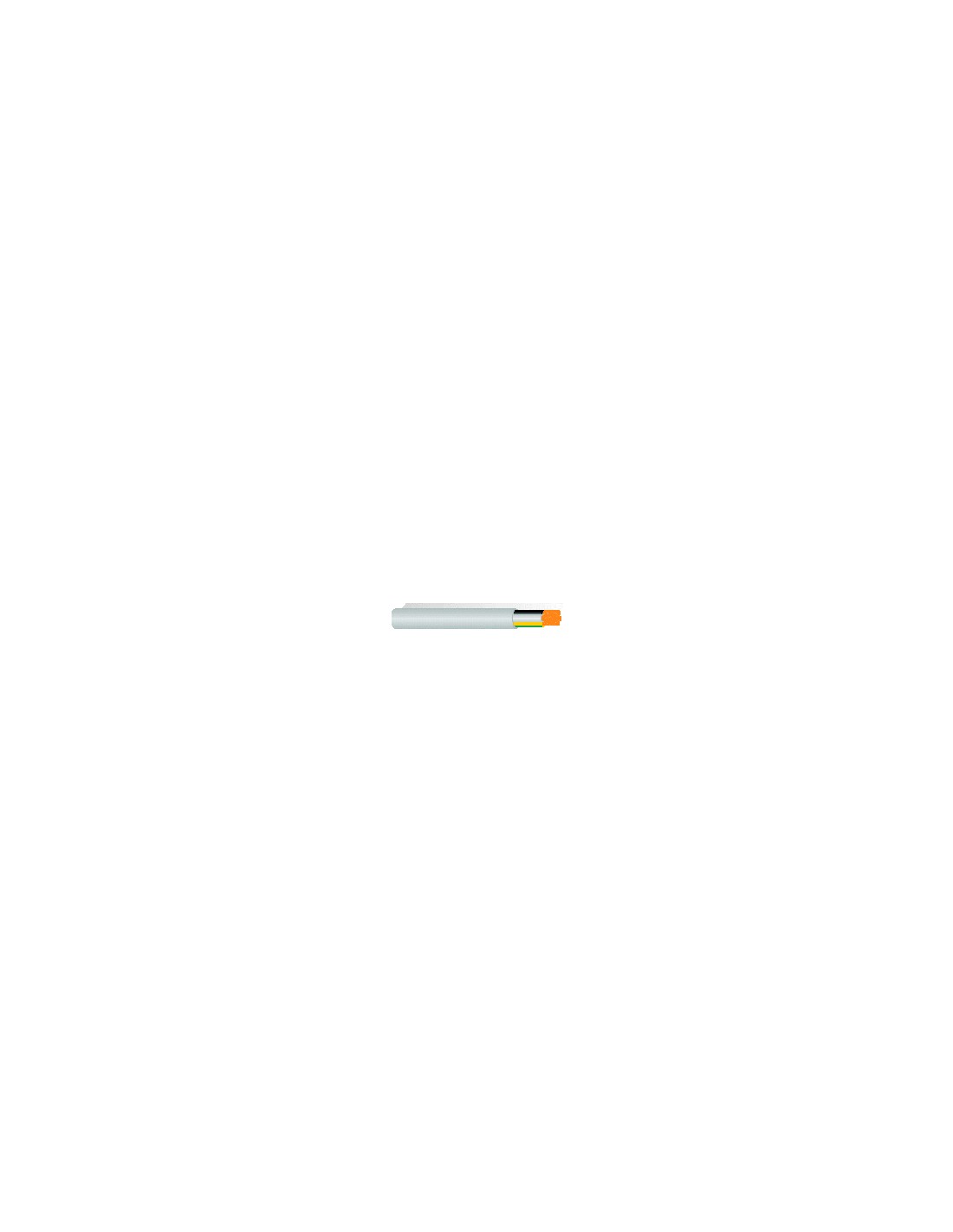

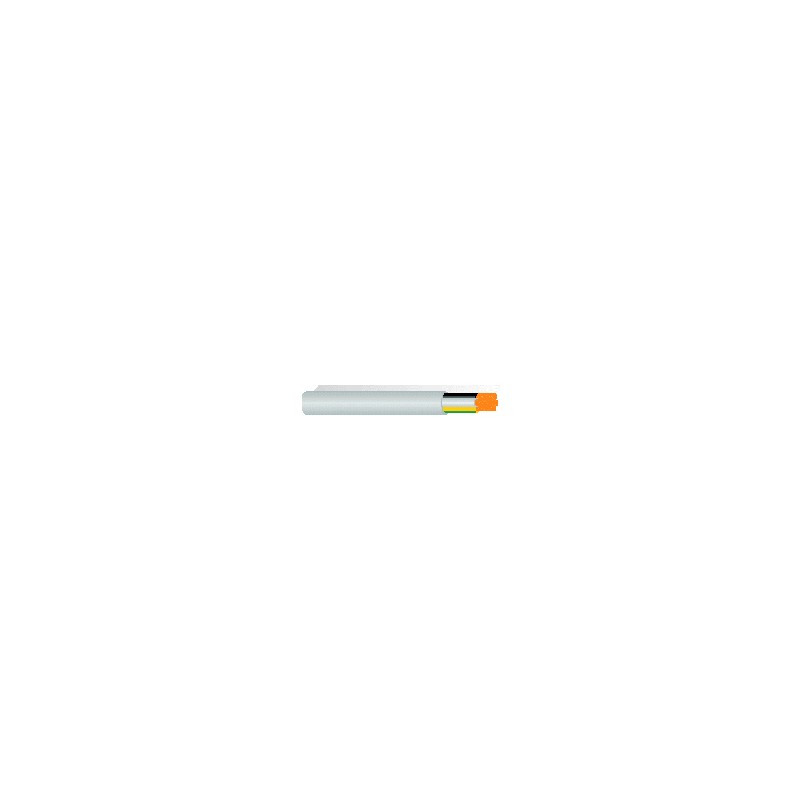

conductor: red copper, flexible formation, class 5 npi fror - 450/750 v
insulation: pvc, ti2 quality
sheath: pvc, tm2 quality
color: grey.
npi® = no fire propagation
functional characteristics
nominal voltage uo / u: 450/750 v
maximum working temperature: 70 ° c
maximum short circuit temperature: 160 ° c
particular characteristics
good resistance to mechanical stress and chemical agents.
good flexibility and behavior at low temperatures.
laying conditions
minimum installation temperature: 0 ° c
minimum bending radius recommended: 10 times the diameter of the cable for laying
mobile, 4 times for fixed laying.
maximum recommended tensile stress: 1.5 kg per mm² of copper section for
mobile installation, 5 kg per mm² for fixed installation
use and type of installation
installation for mobile and fixed installation in places with fire hazards such as
fairs, residential construction, industry and crafts.
they can be installed indoors, in normal or humid environments
temporarily outside.
- 100mt skein
- color: grey
- section 5x1 mmq
