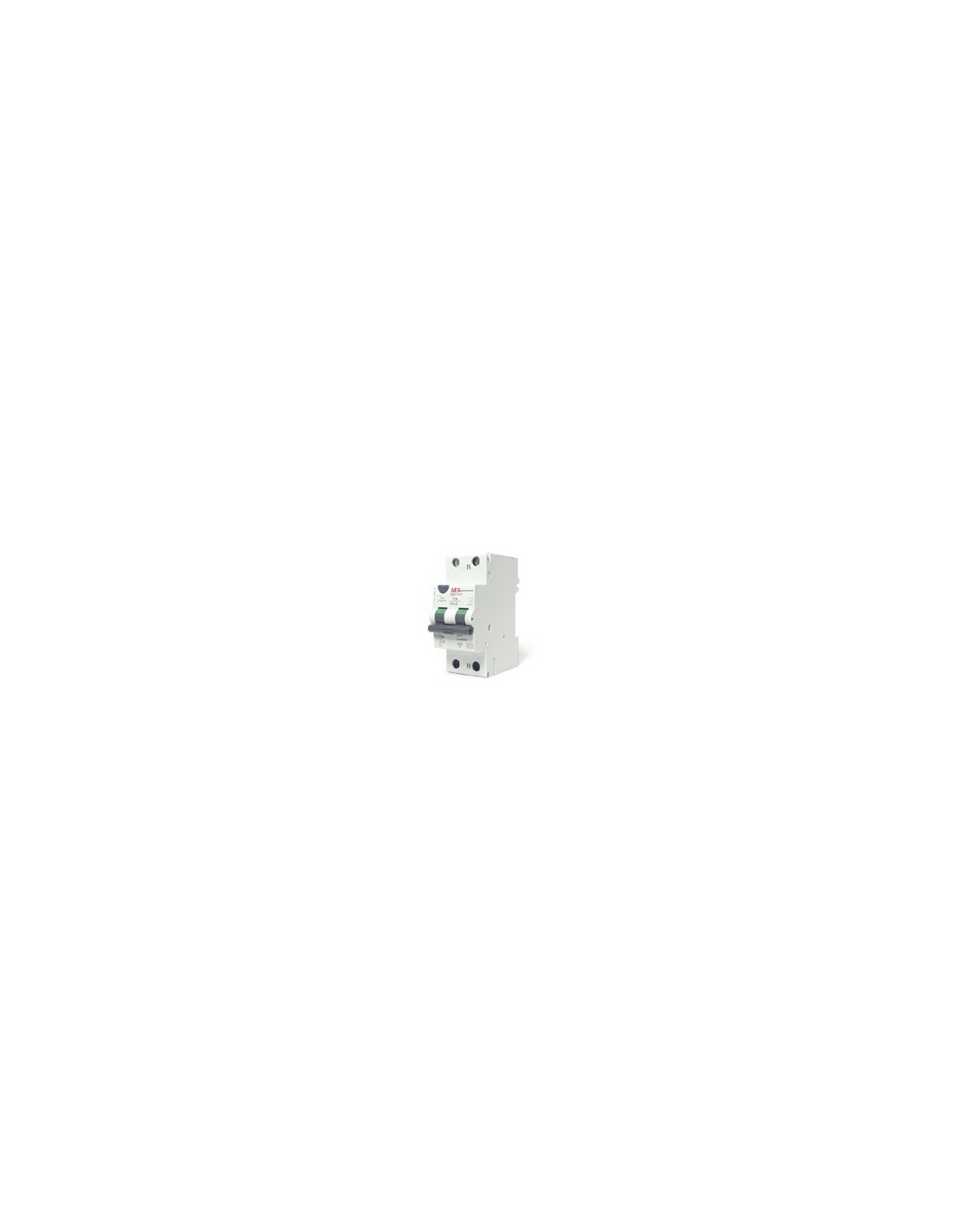

Aeg elfa d90 2p 16a 300ma ac differential circuit breaker.
the automatic circuit breaker includes the thermal magnetic circuit which reassures us during a short circuit, overvoltages or some electrical equipment malfunction. small product but with a thousand virtues especially in electrical protection.
the aeg company guarantees the proper functioning of the magnetothermics.
usually the magnetothermic switch is placed in the general electrical panel near the differential, so there is a greater protection, instead of this device and it already has inside the magnetothermic differential system.
if we look at the laws on the electrical system in italy, it is reported that switches must be installed in any electrical panel and in civil installations
differential combined with the magnetothermic that has the function of protecting us in case of electric shock or any dispersion.
as a function this product that protects us from the power line. in case of dispersion of some small household appliances or some short circuits, the automatic thermal magnetic circuit breaker aeg immediately intervenes, blocking the electrical passage. if when you want to restore it off again then in that case you have to first remove the appliance from the power sockets and then reset everything.
the fundamental thing to check in any home, offices or shops etc. to eliminate the circuit breakers with fuses and to install the circuit breaker differential that allows to give a greater security in these places with their sensitivity is a protection by interrupting the flow of electric current in a circuit in the event of overvoltages without even burden the plant.
it replaces the old lever switches with fuses with one more advantage with great intervention precision. easy to restore only by pressing the lever on the forward side of the aeg automatic switch.
life-saving general electrical system for lines.
then when you need to protect industrial plants or shopping centers or companies where you need to have the safety for those who work there and always good to divide the electrical zones in sectors with the magnetothermal differential circuit breakers that exist unipolar, bipolar, tripolar and quadripolar. so as to have a system always ready to intervene with protection on the power line only where the fault is detected and keep the current on the other lines.
magnetic switches for dyn.
technical features
- rated current in 16a
- 300ma intervention threshold
- ac class
- number of poles 2
- en 61009 standard
- number of modules 2
- power loss (w) 5.62
- rated ac voltage (v) 230
- operating voltage min-max ac (v) 190 255/440
- frequency (hz) 50/60
- operating temperature (° c) -5 / 60
- storage temperature (° c) -25 / 70
- kema approvals
- reference temperature (° c) 30
