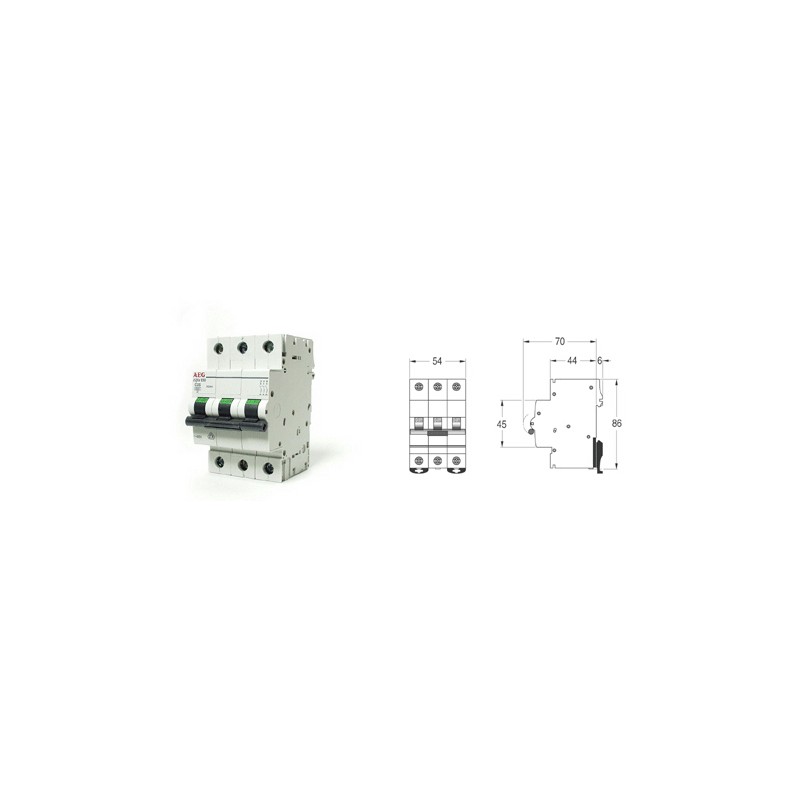

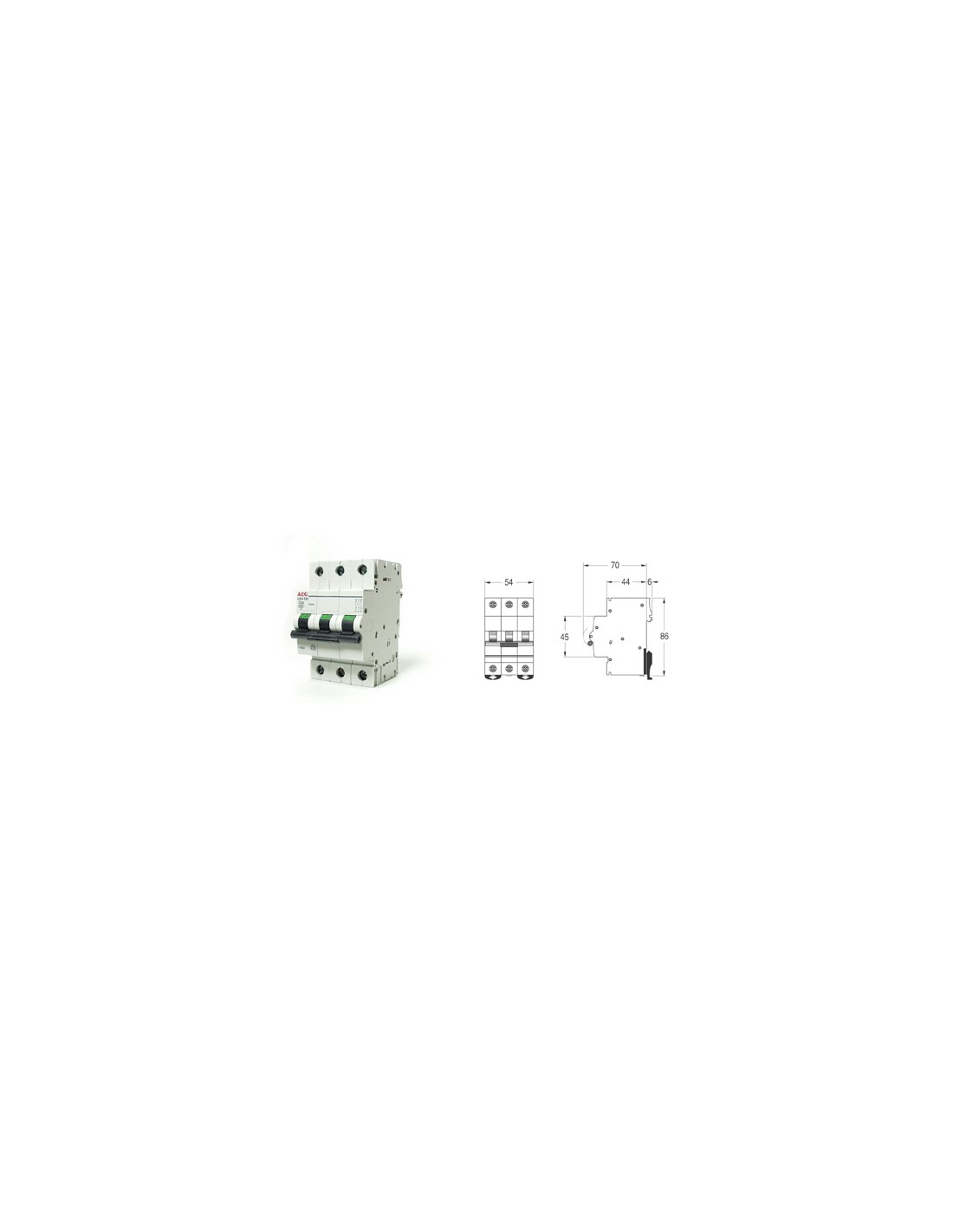

3p magneto-thermal automatic circuit breaker
the thermal magnetic circuit breaker is a device that reassures us during a short circuit, overvoltages or some malfunction of electrical equipment. small product but with a thousand virtues especially in electrical protection.
usually the magnetothermic switch is placed in the general electrical panel near the differential so there is greater protection.
if we look at the laws on the electrical system in italy it is reported that in any electrical panel and in civil installations the automatic magneto-thermal switches must be installed together with the differential switch that has the function of protecting us in case of electric shock or any leakage.
technical features
- rated current in (a) 32
- number of poles 3
- rated short-circuit power (ka) 4.5
- c intervention curve (5 - 10 in)
- en 60898 standard
- number of modules 3
- power loss (w) 12
- rated ac voltage (v) 400
- operating voltage min-max ac (v) 12-250
- frequency (hz) 50/60
- nominal voltage dc (v) -
- operating voltage min-max dc (v) -
- suitable for sectioning according to en 60947-2 no
- operating temperature (° c) -25 / 55
- storage temperature (° c) -55 / 55
- vde, imq homologations
- reference temperature (° c) 30
- limitation class 3
- 552652 aeg elettra
