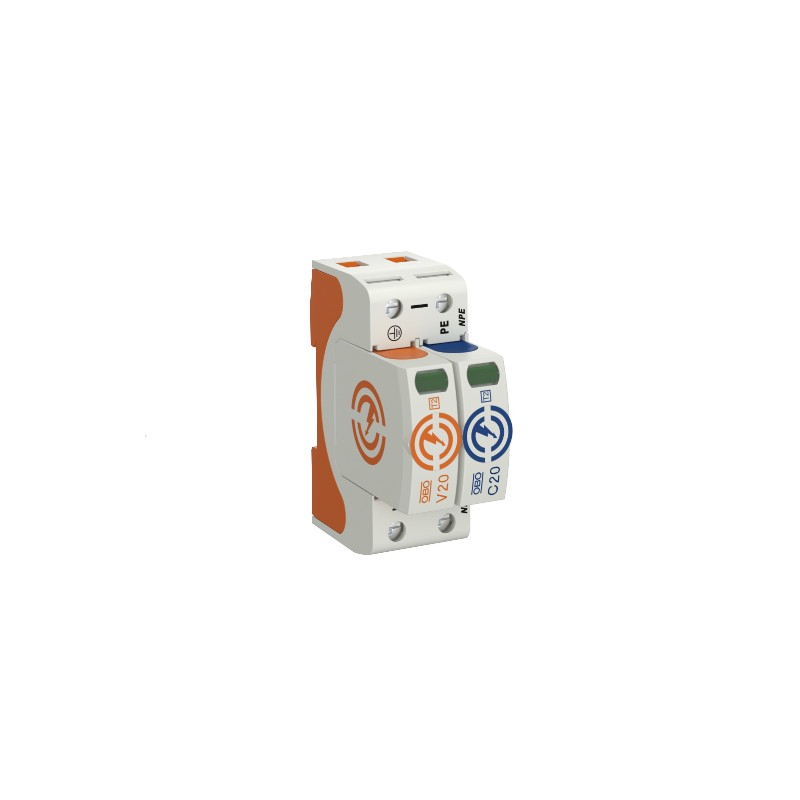

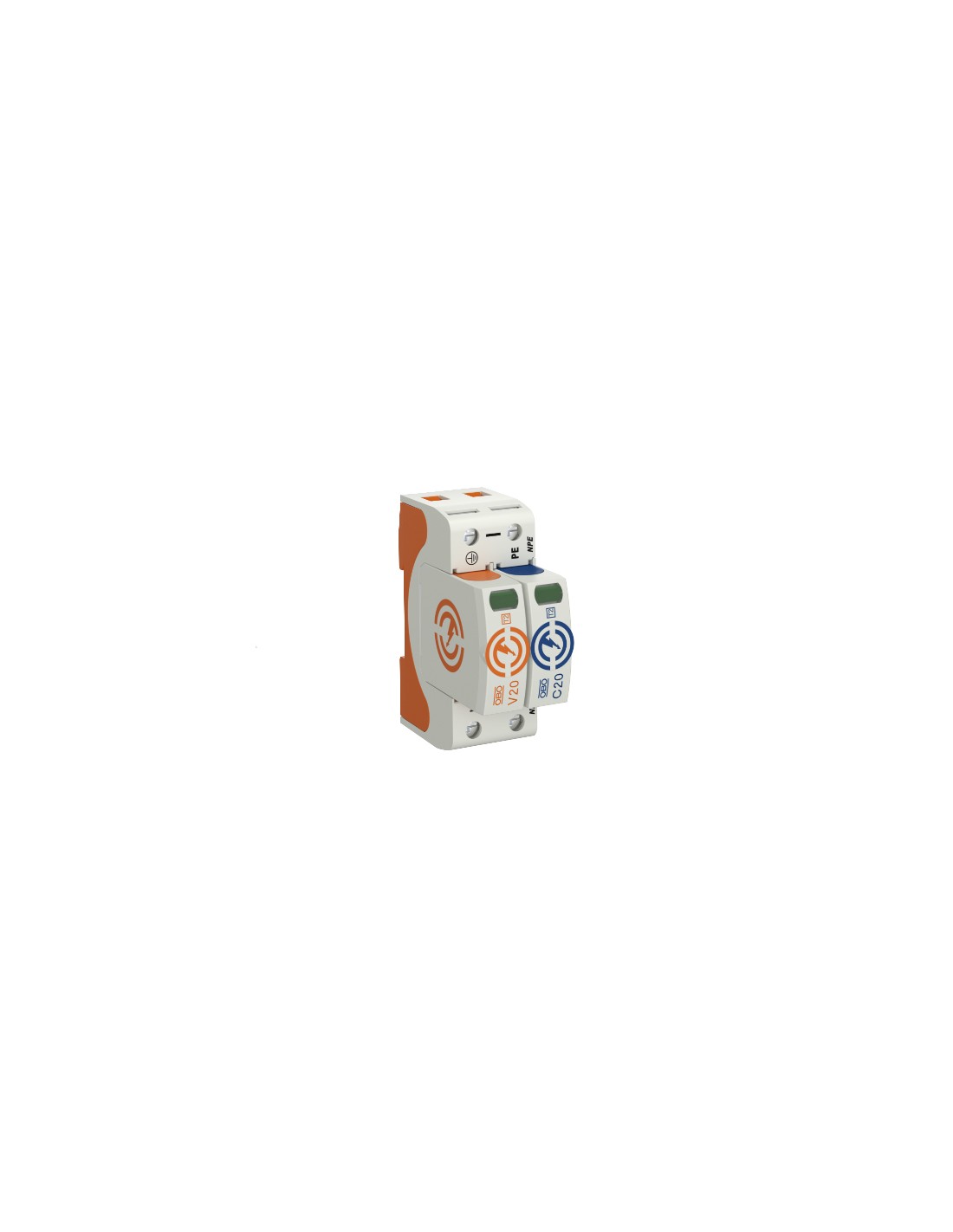

Type 2 ovo surge protector 1 pole npe 280 v

Type 2 electrical surge protector
the arrester is an electrical device that protects the circuits or electrical systems from overvoltages.
there are different types of overvoltages which can be of atmospheric origin such as lightning, or accidentally generated by the electricity distributor. in this way they can cause damage to equipment and electrical systems in shops, homes, warehouses, shopping centers, buildings, offices and industries.
protection of power lines
· installation for overvoltage protection according to vde 0100-443 (iec 60364-4-44)
· discharge capacity up to 40 ka (8/20) per pole via high-performance varistors
· modular limiter with extractable cartridge complete with dynamic disconnection system and visual status indicator
· interlocking connection with vibration protection
· halogen-free plastic (ul 94 v-0)
· the fs versions are equipped with an auxiliary contact in clean exchange, without potential, for remote fault signaling
- spd according to iec 61643-11 class ii
- ip20 protection degree
- dimensions 90 x 73 x 35.6
