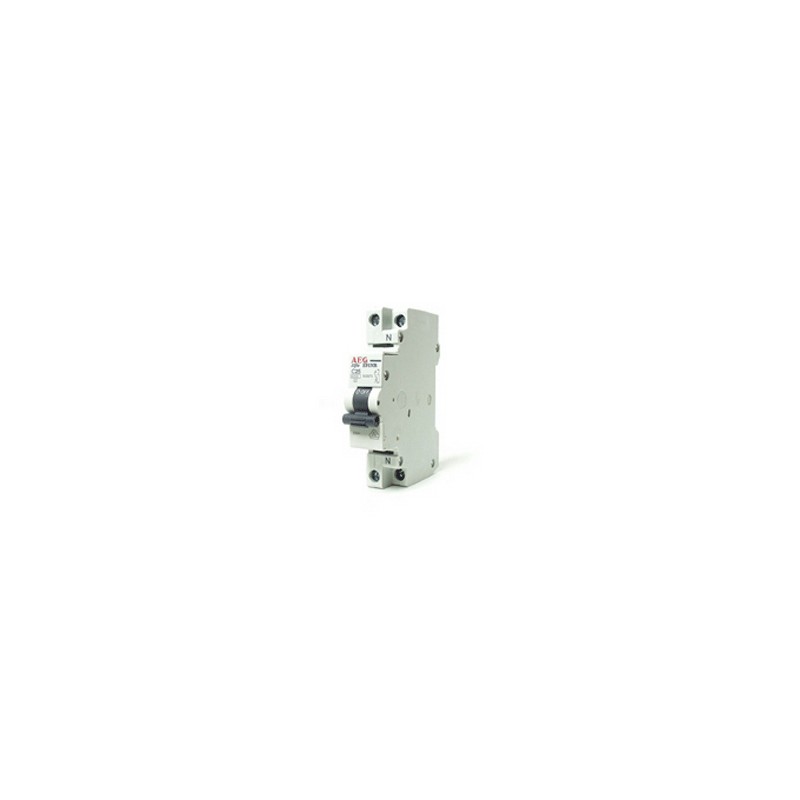

Automatic magnetothermic switch aeg elfa e91enrc 1p c 16a 4,5ka aeg elfa
the thermal magnetic circuit breaker is a device that reassures us during a short circuit, overvoltages or some malfunction of electrical equipment. small product but with a thousand virtues especially in electrical protection.
the aeg company guarantees the proper functioning of the magnetothermics.
usually the magnetothermic switch is placed in the general electrical panel near the differential so there is greater protection.
if we look at the laws on the electrical system in italy it is reported that in any electrical panel and in civil installations the automatic magneto-thermal switches must be installed together with the differential switch that has the function of protecting us in case of electric shock or any leakage.
as a function this product that protects us from the power line. in case of dispersion of some small household appliances or some short circuits, the aeg thermal magnetic circuit breaker immediately intervenes, blocking the electrical passage. if when you want to restore it off again then in that case you have to first remove the appliance from the power sockets and then reset everything.
the fundamental thing to check in any home, offices or shops etc. to eliminate the circuit breakers with fuses and to install the automatic magnetothermic switch that allows to give a greater security in these places with their sensitivity there is a protection by interrupting the flow of electric current in a circuit in the event of overvoltages without even burdening the plant.
it replaces the old lever switches with fuses with one more advantage with great intervention precision. easy to restore only by pressing the lever on the forward side of the aeg automatic switch.
life-saving general electrical system for lines.
then when it is necessary to protect industrial plants or shopping centers or companies where it is necessary to have security for those who work there, and always dividing the electrical zones into sectors with automatic switches that are unipolar, bipolar, tripolar and quadripolar. so as to have a system always ready to intervene with protection on the power line only where the fault is detected and keep the current on the other lines.
magnetic switches for dyn.
technical features
- rated current in (a) 16
- number of poles 1 n
- rated short-circuit power (ka) 4.5
- c intervention curve (5 - 10 in)
- en 60898 standard
- number of modules 1
- power loss (w) 3.12
- rated ac voltage (v) 230
- operating voltage min-max ac (v) 12 250
- frequency (hz) 50/60
- nominal voltage dc (v) -
- operating voltage min-max dc (v) -
- suitable for sectioning according to en 60947-2 no
- operating temperature (° c) -25 / 55
- storage temperature (° c) -55 / 55
- vde, imq homologations
- reference temperature (° c) 30
- limitation class 3
- brand aeg product
