Home automation dimmer with 1 built-in circuit and 1 wired 230V input for incandescent, halogen, dimmable LED and dimmable CFL l

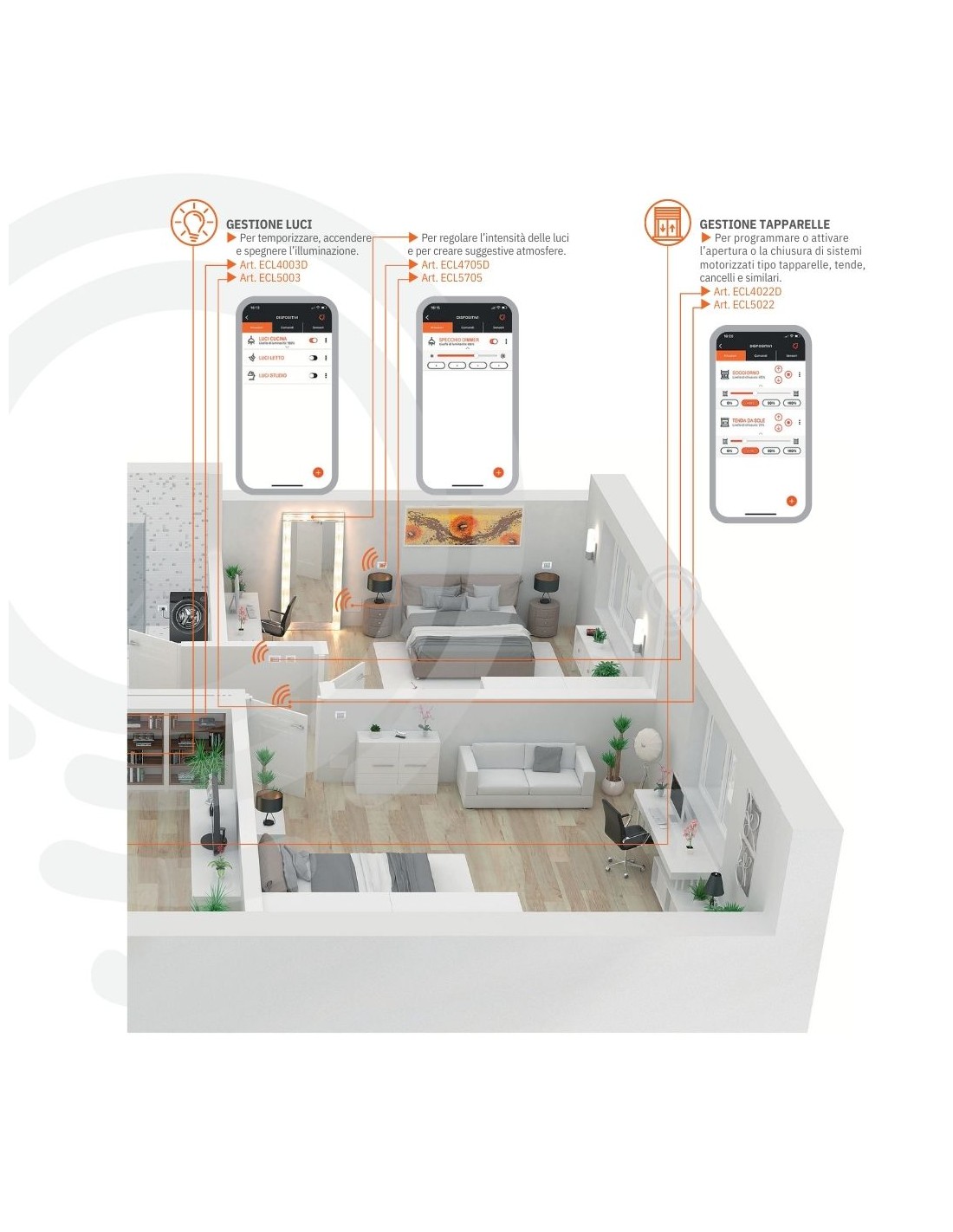

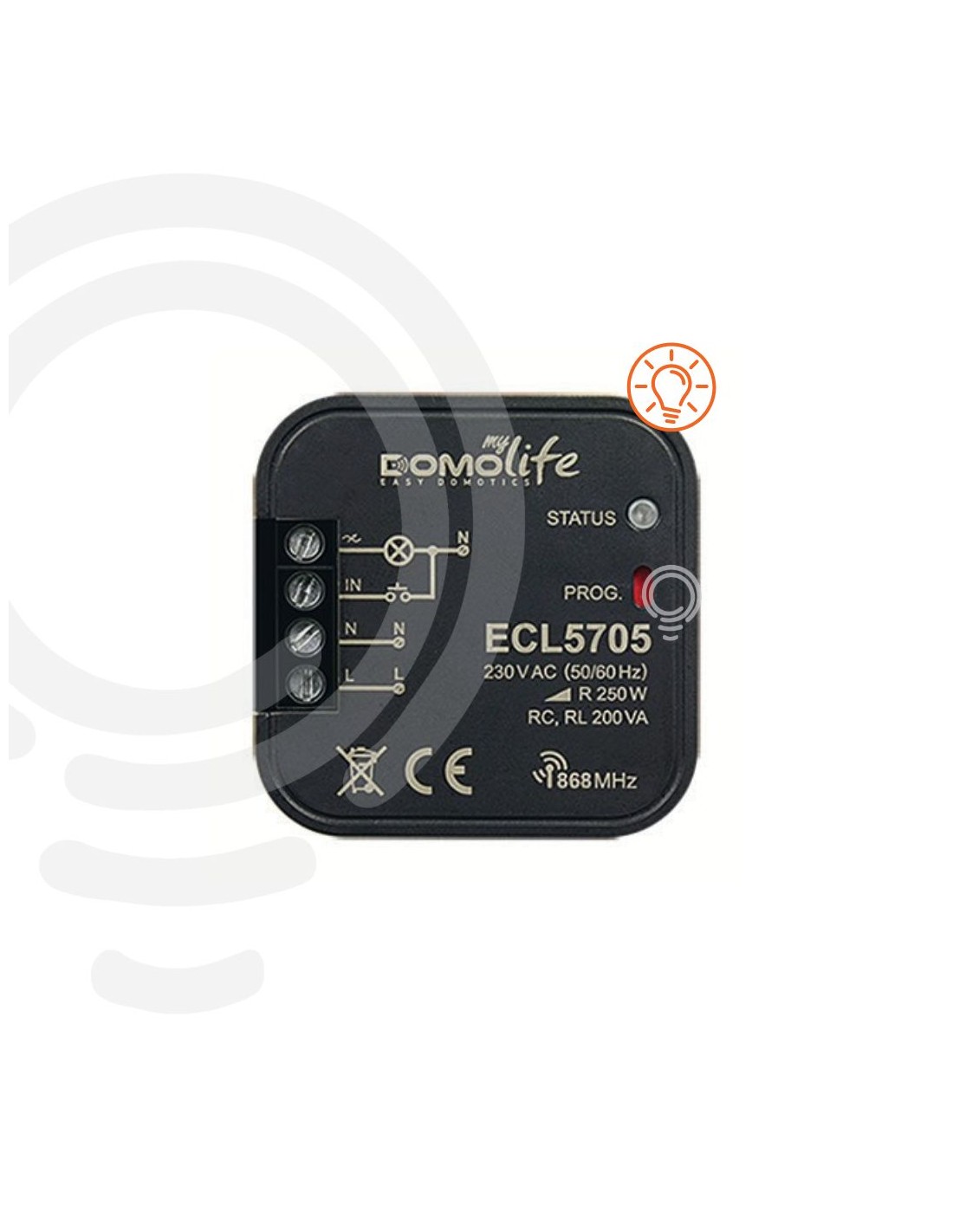

The product in question is a control actuator for home automation, compatible with all commands of the DOMO myLife system. It can be managed and controlled from iOS and Android mobile devices, such as tablets and smartphones, using the D myLife app.
Actuator status and light intensity level can be viewed in the D myLife app, giving greater control and monitoring to its users.
The actuator has one output channel and the state of the output is programmable after supply voltage failure. The actuator can be controlled by up to 1 traditional command device, such as buttons or switches, allowing for more flexible use of the product.
The actuator has 3 operating modes when activated by commands, which are: on/off, comfort and timed. In addition, it has 3 operating modes when controlled by the D myLife app, which are: on/off, dimmer and comfort. In addition, it is possible to configure 4 preferred light intensity levels via the app, to offer greater comfort and control over the lighting.
The actuator has an encrypted RF transmission and offers a long operating range of up to 250m in open areas. The power supply is 230V∞, making it easy to install the product in junction boxes.
In summary, the home automation control actuator is a flexible and versatile product, suitable for lighting control in residential and commercial environments. Thanks to compatibility with all system commands, management via iOS and Android mobile devices and encrypted RF transmission, the product offers greater comfort and control to users. The ability to configure your preferred light levels via the app and the ability to support a wide range of loads make this actuator a complete and cost effective solution for lighting control.

Characteristics

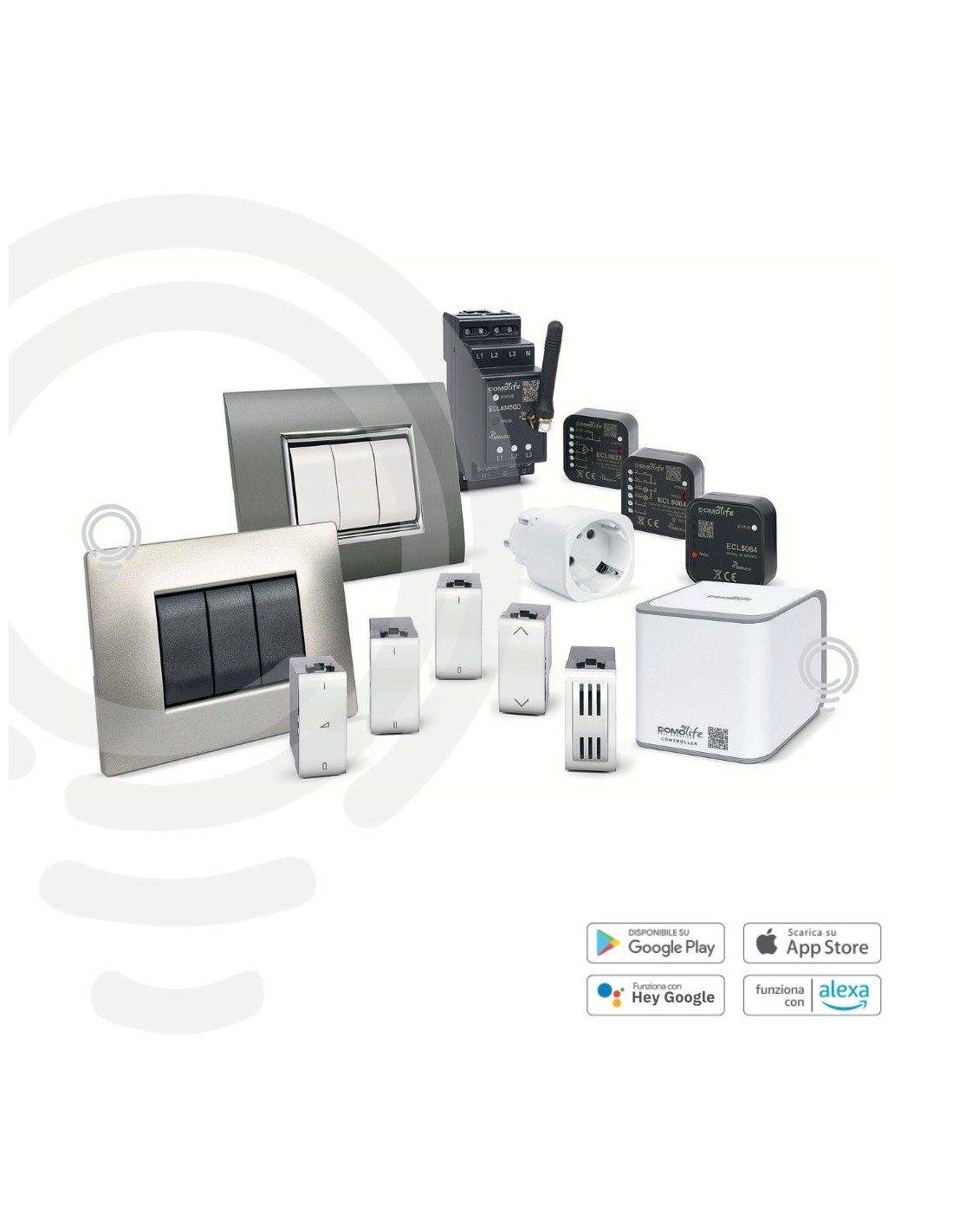

· compatible with all controls of the DOMO myLife system
· management and control from iOS and Android mobile devices
(tablet and smartphone) with the D myLife app
· status of the actuator and light intensity level
displayed in the D myLife app
· 1 output channel (230V∞ voltage output)
· state of the programmable output
after a drop in the supply voltage

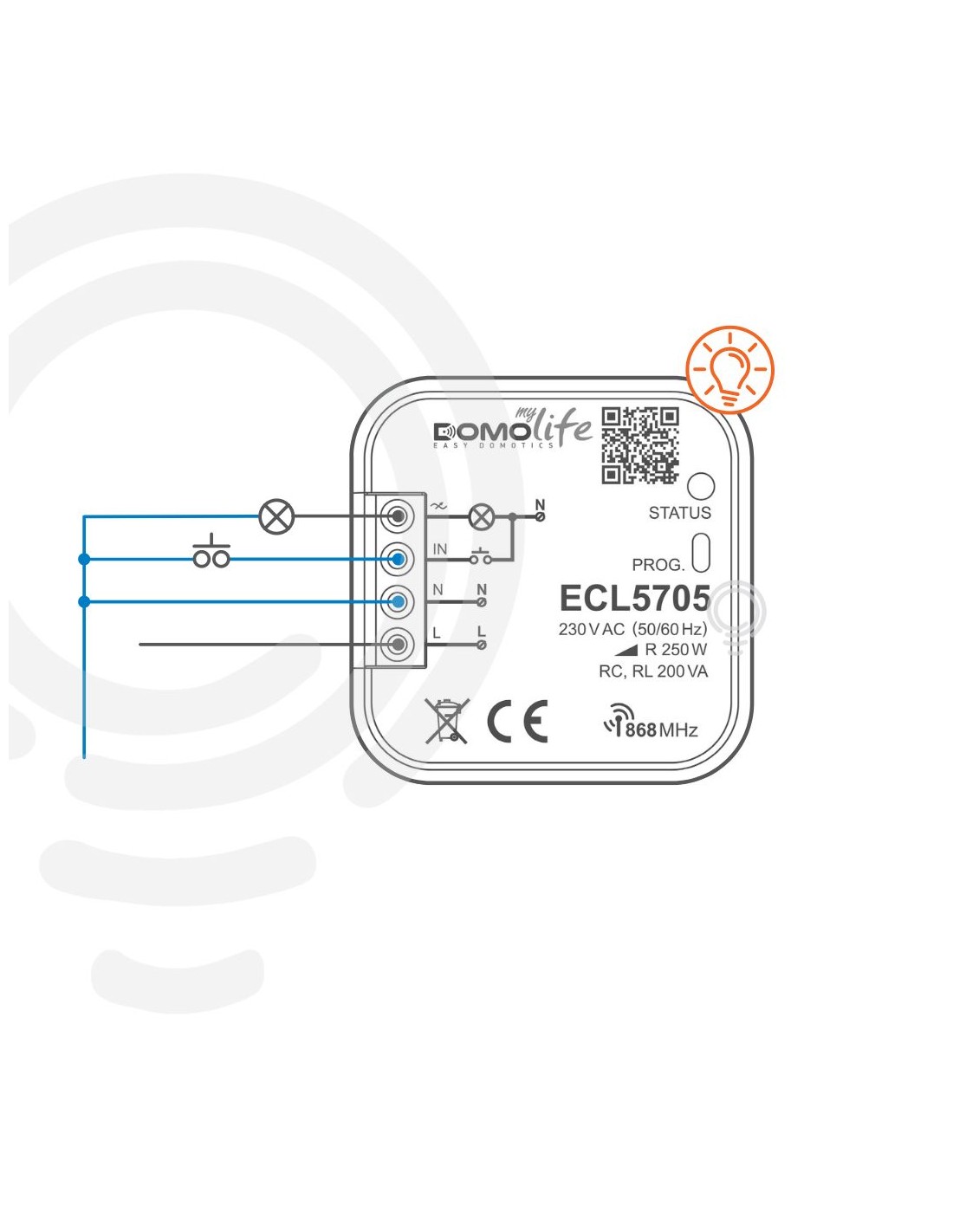

· control of the actuator via a maximum of 1 traditional command device (button, switch)
· 3 modes of operation when activated
from the commands (on/off, comfort, timed)
· 3 modes of operation when commanded
from the D myLife app (turn on/off, dimmer, comfort);
· possibility of con?guring 4 levels of light intensity
favorites (comfort levels) via the App
· encrypted RF transmission
· long operational range (up to 250 m in open areas)
· 230V∞ power supply
· installation in junction boxes

Loads supported
· Dimmable LED max 200VA
· resistive loads (R) max 250W
· capacitive ohmic loads (RC) max 200VA
· ohmic inductive loads (RL) max 200VA
