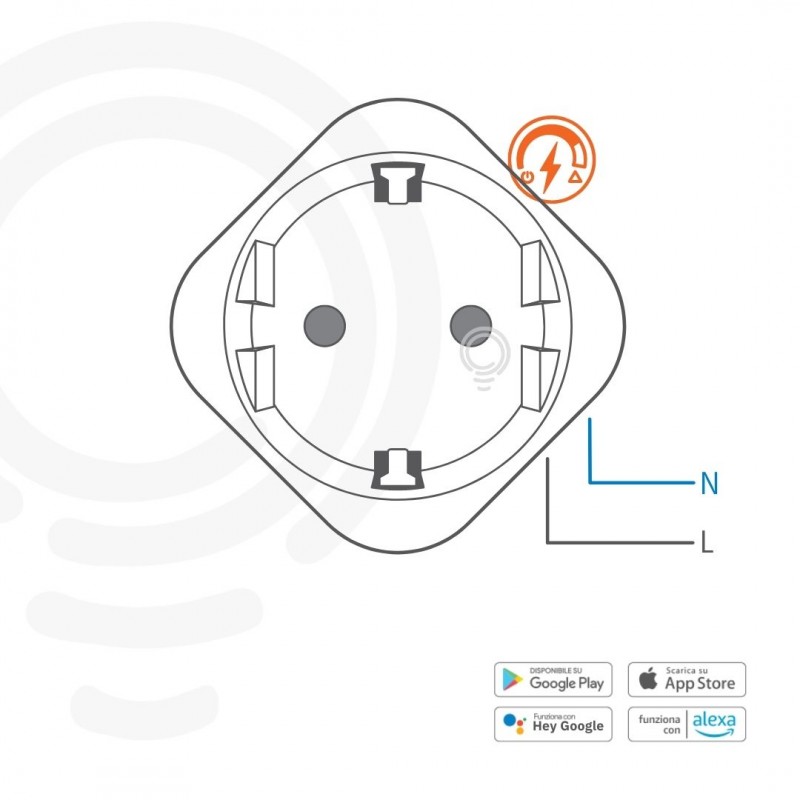

Schuko socket controlled with 230V energy consumption measurement

The 230V schuko socket controlled with energy consumption measurement is a device designed for intelligent management of electricity. Thanks to compatibility with the DOMO myLife system, the schuko socket can be managed and controlled from iOS and Android mobile devices, such as tablets and smartphones, using the D myLife app. The device allows you to monitor the energy consumption of the connected device, measuring voltage, current, active power and estimating the energy costs of the device. Furthermore, thanks to the historical and daily function, it is possible to have a detailed report on the use of electricity. The controlled schuko socket is equipped with a 230V∞ voltage output channel, with a programmable output status after a drop in the supply voltage. The device has four operating modes when controlled by the controls (on/off, bistable, monostable, timed) and two operating modes when controlled by the D myLife app (on/off, timed). Encrypted RF transmission and long operating range (up to 300m in open areas) ensure maximum security and signal coverage. The schuko socket controlled with 230V energy consumption measurement can be installed directly in a 230V∞ schuko socket and supports loads up to 13A/cosf=1 or 8A/cosf=0.5.
Characteristics
· compatible with all controls of the DOMO myLife system
· management and control from iOS and Android mobile devices
(tablet and smartphone) with the D myLife app
· status displayed in the D myLife app
· measurement of voltage, current, active power and energy consumption
· estimation of the energy costs of the connected device
· historical and daily function
· 1 output channel (230V∞ voltage output)
· state of the programmable output
after a drop in the supply voltage
· 4 modes of operation when commanded by controls
(turn on/off, bistable, monostable, timed)
· 2 modes of operation when commanded
from the D myLife app (on/off, timed)
· encrypted RF transmission
· long operational range (up to 300 m in open areas)
· 230V∞ power supply
· installation directly in a 230V∞ schuko socket
· supported loads: 13A/cosf=1 or 8A/cosf=0.5
