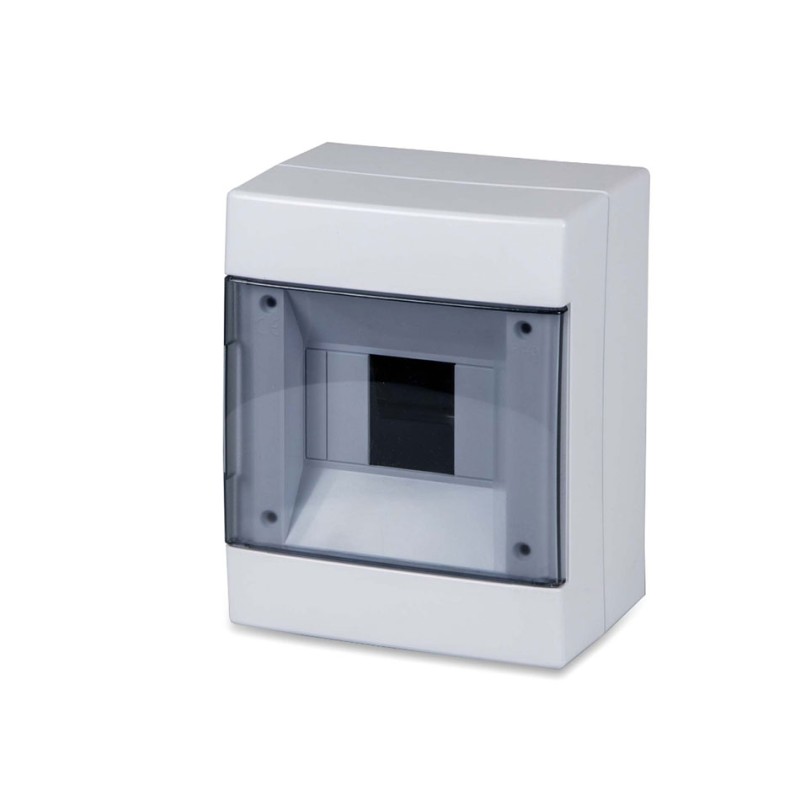

Wall-mounted electrical panel switchboard with 4 IP40 transparent door modules

The electrical distribution panel is a main current distribution box of the electrical system where it distributes and powers the sockets, lighting system, household appliances and everything that is part of the electrical world.

domestic and industrial electrical panel components. safety of electrical systems.
with the electrical switchboard you have the possibility of dividing the electrical lines according to your needs and having security if a greater load occurs or if a short circuit occurs or if maintenance needs to be carried out on the electrical sockets.
the electrical panel usually has a shockproof polycarbonate structure and is chosen based on the circuit breaker modules to be inserted.

the electrical switchboard meets the protection and control needs of modern distribution systems.
installation is simple and easy thanks to the supplied accessories that complete the system. the wall-mounted electrical switchboard with door is available in the classic gray color ral7035.

the high mechanical resistance ensures maximum protection in common external applications such as in industrial premises or civil series.

Terminal block kit suitable for every type of model and easy to install.
circuit identification labels.
fixing bracket for double insulation.

the seats of the screws fixing the cover to the base are hidden by a side frame.
you can point out the colors of the electrical cables in civil and industrial systems.
diameter of electrical cables in the system.

technical features
- IP40 wall-mounted switchboard with door
- prepared for terminal block mounting -
- standard color gray ral 7035
- supplied with: steel din bar for circuit breaker mounting mounted on the bottom.
- unusable module cover caps -
- measures 140 x 180 x 100 mm
- 4 CE modules art. M03604 MASTER
