Rigid tube rk gray d40 cei installations for...

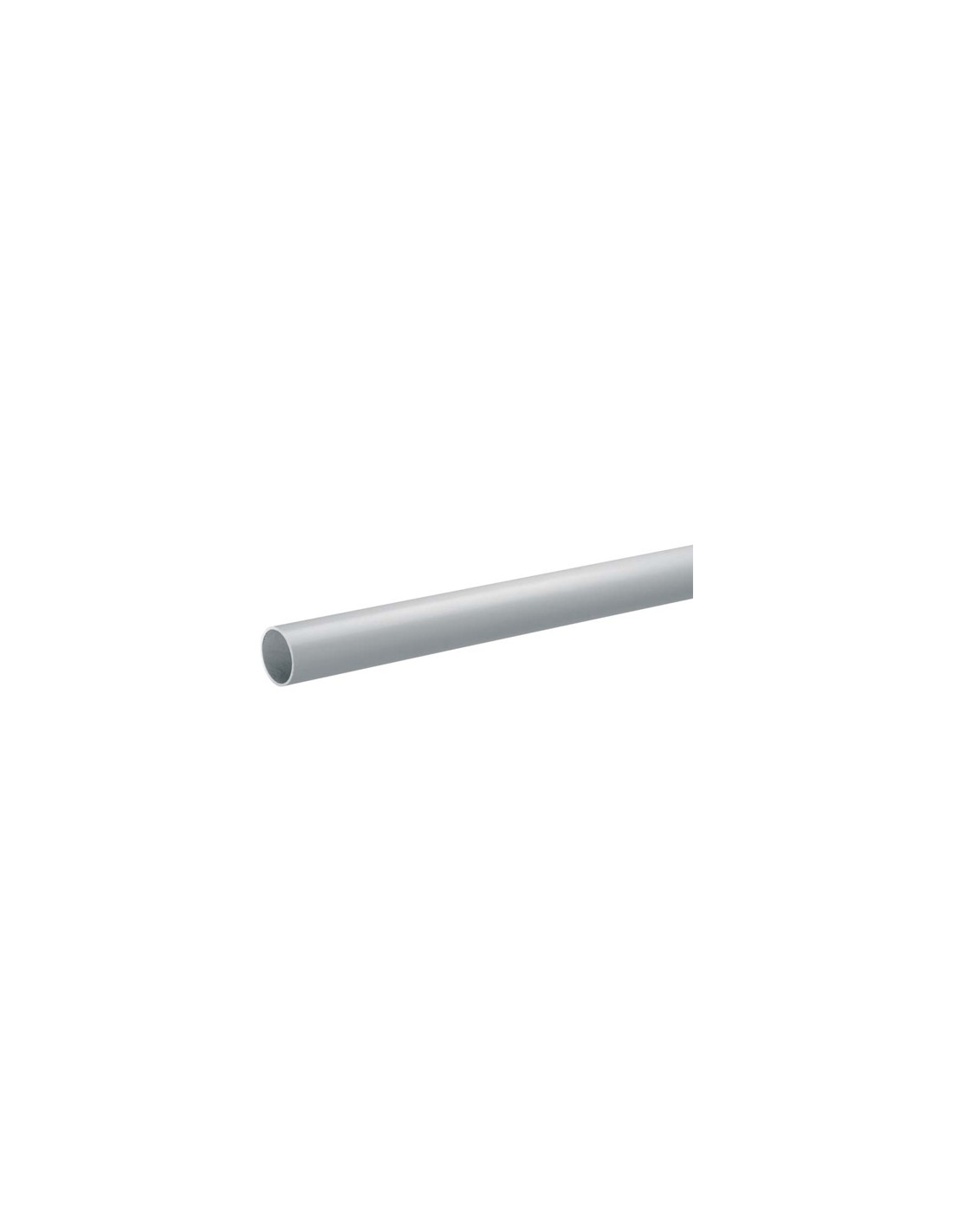

Rigid tube rk gray d40 cei installations for electrical systems 3 meter bar

Rigid tube rk gray d40 cei installations for electrical systems 3 meter bar

TG1540
€7.69
Tax included
Self-extinguishing material for external wall systems safety regulations

Description

Rigid gray tube d.40 ral 7035

material: based on rigid pvc
- crush resistance: class 3 above 750 newton on 5 cm at 23 ± 2 ° c
- impact resistance: class 3 2kg from 10 cm to -5 ° c
- minimum temperature: class 2 -5 ° c
- maximum temperature class 1 60 ° c
- electrical insulation resistance: greater than 100 megohms for 500 v of operation for 1 min
- dielectric strength: above 2000 v - 50 hz for 15 min
- fire resistance: passes the "glow wire test" at 850 ° c according to cei en 60695-2-11
- curvability: ø 16-20-25, cold bendable (with mptn spring)


- self-extinguishing rigid tube,
- class. 3321, according to cei en 50086, gray,
- imq quality mark
- gray ral 7035 color
- bar length 3m
- l: 3000 ± 15
- ø external: 40 -0.4
- internal ø min .: 35.4



- packaging 30mt pack
- 3 meter bars
(the price is for the 3 meter bar)
