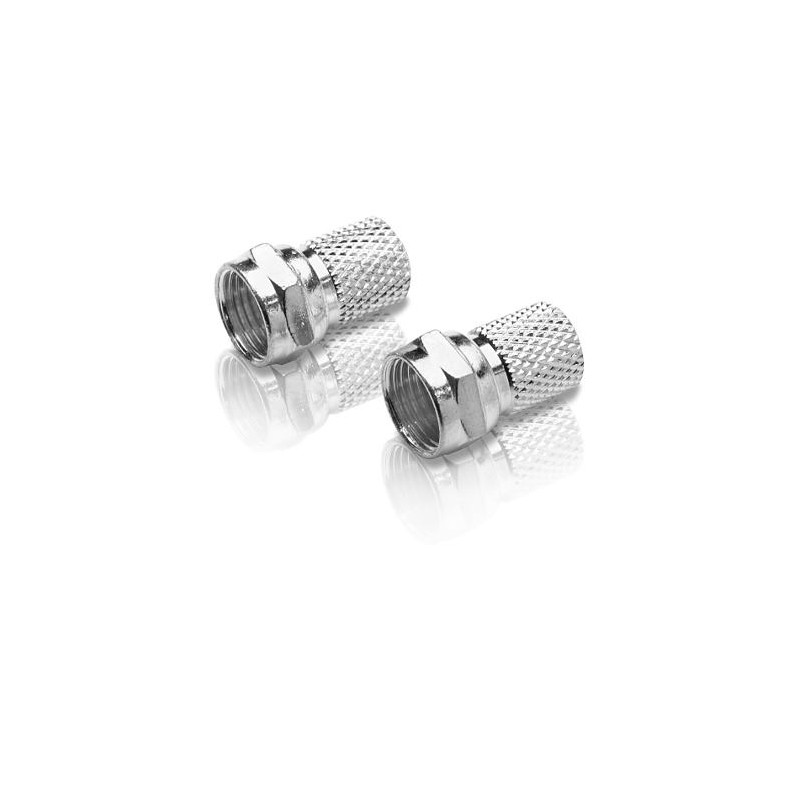

Screw compressed tv connector f male screw d.5 antenna screw

Name: Screw compressed tv connector f male screw d.5 antenna screw
Brand: Life
SKU: 02079052
Price: 0.22 EUR
Availability: InStock

Brand: Life

Reference 02079052

€0.22

Tax included

Tv male f plug connector for satellite and digital satellite equipment d.5

Description

Male f antenna connector
quality connectors with antenna cable clamp.
screw typesuitable for digital terrestrial and satellite antenna systems for coaxial cable.

technical specifications
- body: nickel plated brass
- isolation: delrin
- impedance: 75 w
- frequency range: 0 - 1500 mhz
- maximum applicable voltage: ac 150v
- maximum voltage applicable for 1 minute: ac 500v
- contact resistance: 5.0 mw max.
- insulation resistance: 500 mw min. dc 500v

Product Details

Condition New
