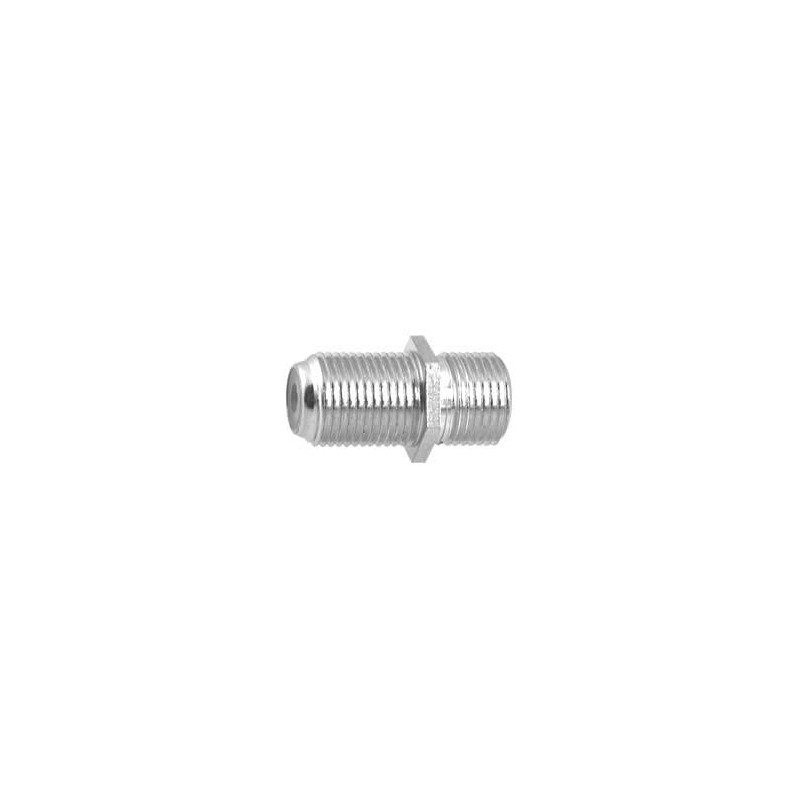

Connector f double female tv sat 02079015

The TV Sat 02079015 double female F connector is an essential component for satellite or cable television installations. Designed to allow for a simple and reliable connection, this adapter features two female F connectors on either side. F-connectors are used extensively in the telecommunications industry for RF (radio frequency) connections and are particularly common in satellite and television installations.

This dual female F connector allows you to connect two cables with male F connectors, creating a secure and stable connection between your devices. It can be used to extend the length of an existing cable, allowing television or satellite equipment to be located further away from the wall socket. It can also be used to split the signal between two devices, such as a TV and a set-top box, allowing different programs to be viewed on two separate screens.

This F-connector is compatible with standard coaxial cables and offers a high quality connection, ensuring signal transmission without loss or unwanted interference. Its high-quality, heavy-duty construction ensures long life and a reliable connection over time.

In summary, the TV Sat 02079015 double female F connector is a versatile and reliable tool for satellite or cable television installations. Whether you need to extend a cable or split the signal between two devices, this adapter ensures a high-quality connection and uninterrupted signal transmission.
body: nickel plated brass
insulation: delrin
Impedance: 75W
frequency range: 0 - 1500mhz
Maximum applicable voltage: AC 150V
maximum applicable voltage for 1 minute: ac 500v
contact resistance: 5.0mw max.
insulation resistance: 500 mw min. dc 500v
